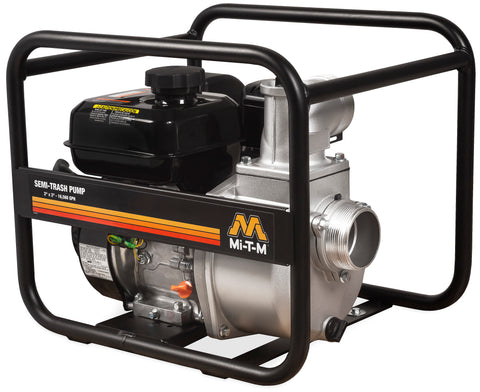

MI-T-M WTP-S03-2MGM Semi-Trash Pump 3-Inch
This compact, lightweight semi-trash pump is designed for rapid water removal. It is built for contractors requiring high-volume drainage, featuring a 212cc OHV engine for reliable performance.
- Capacity16,560gph
- Head104ft.
- Engine212cc
- Weight73.00lbs.
01Features & Build
-
Frame
- Wraparound frame finished with heavy-duty powder coating
- Vibration-dampening rubber isolators
-
Components
- Mechanical seals constructed from silicon carbide
- Cast iron impeller and volute molded for precision to decrease wear and vibration
- Portable pump housing manufactured from die-cast aluminum
02Specifications12
| Suction Discharge Size | 3 in.x3 in. |
|---|---|
| Max. Total Head | 104 ft. |
| Suction Lift | 28 ft. |
| Displacement/ Engine | 212cc Mi-T-M OHV |
| PSI | 45 |
| Max. Capacity | 16,560 gph |
| Fuel Tank Capacity | 1.0 gallon |
| Net Weight | 73.00 lbs. |
| Shipping Weight | 82.00 lbs. |
| Length | 21.25 in. |
| Width | 17.25 in. |
| Height | 18.25 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Warranty
- 3 YearMi-T-M Engine
- 2 YearPump
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
04Documents & Downloads2
05Shipping & Ordering
This unit ships at a weight of 82.00 lbs. Freight is quoted based on the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
