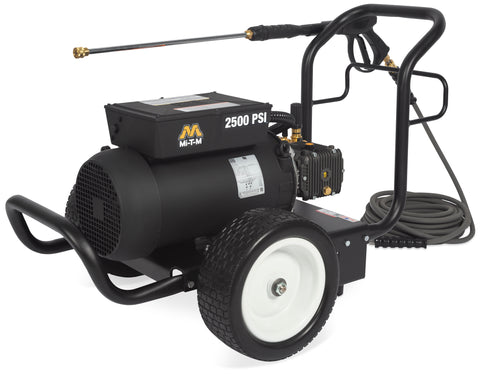

MI-T-M JP-2503-2ME1 JP Series Electric Direct Drive
This electric direct drive pressure washer is designed for indoor cleaning of floors, equipment, and work surfaces. It features a heavy-duty AR pump for consistent performance in commercial environments.
- Pressure2500psi
- Flow3.2gpm
- Motor6.0HP
- Weight225.00lbs
01Features & Build
-
Pump
- Adjustable pressure unloader valve
- Forged brass manifold construction
- Thermal and safety relief valves
- Integrated low-pressure detergent injector
-
Motor
- Totally enclosed fan-cooled electric motor
- 35-foot power cord equipped with GFCI
- ETL certified for US and Canada
- NEMA 6-30P plug configuration
-
Frame
- Powder-coated steel chassis
- 13-inch flat-free tires
02Specifications10
| PSI | 2500 |
|---|---|
| GPM | 3.2 |
| Horsepower/Motor | 6.0 HP, 230V, 1Ø, 24.1A |
| Pump | AR |
| Plug Type | NEMA 6-30P |
| Net Weight | 225.00 lbs. |
| Shipping Weight | 275.00 lbs. |
| Length | 44.00 in. |
| Width | 26.00 in. |
| Height | 27.00 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03What’s Included3
- Quick connect nozzles - 0°, 15°, 25° and detergent nozzle
- 50-foot x 3/8-inch non-marking hose
- 36-inch lance with insulated trigger gun
04Warranty
- 7 YearAR Pump
- 1 YearElectric Motor
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
05Documents & Downloads2
06Shipping & Ordering
This unit ships fully assembled with a shipping weight of 275.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
