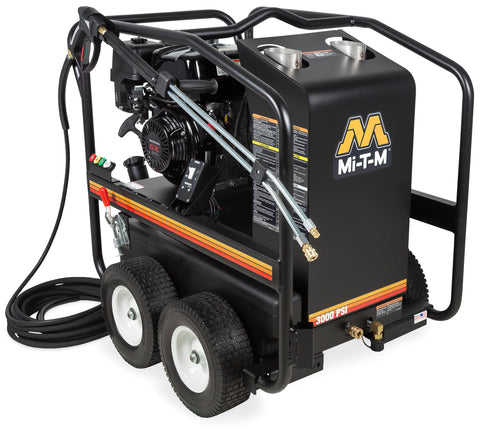

MI-T-M HSP-3003-3MGH HSP Series Gasoline Direct Drive
This unit removes grease and oil from shop floors and equipment using an Electro Magnetic Firing system. It is designed for professional contractors who require a high-output heat exchanger for heavy-duty cleaning.
- Pressure3000psi
- Flow2.9gpm
- Engine270cc
- Net Weight407.00lbs
01Features & Build
-
Pump
- External bypass system prevents heat accumulation
- Preset unloader valve constructed of stainless steel and brass
- Forged brass manifold
- Integrated thermal relief valve
- Low pressure detergent injection system
-
Frame
- Reinforced powder-coated steel chassis with center-balanced lift point
- 13-inch flat-free tires
-
Components
- Top-fired powder-coated heat exchanger
- Burner compatible with No. 1 or No. 2 diesel or kerosene; not approved for bio-fuel
- ETL certified for US and Canada
-
Miscellaneous
- Temperature rise of 150°F/66°C above ambient with 200°F maximum outlet temperature
02Specifications13
| PSI | 3000 |
|---|---|
| GPM | 2.9 |
| Displacement/ Engine | 270cc Honda GX270 OHV |
| Pump | AR |
| Engine Fuel Tank Capacity | 1.40 gallon |
| Burner Fuel Tank Capacity | 5.5 gallon |
| Burner Fuel Cons. | 1.84 gph |
| BTU Per Hour | 253,000 |
| Net Weight | 407.00 lbs. |
| Shipping Weight | 530.00 lbs. |
| Length | 43.00 in. |
| Width | 30.00 in. |
| Height | 41.00 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03What’s Included3
- Quick connect nozzles - 0°, 15°, 25° and 40°
- 50-foot x 3/8-inch steel wire-braided hose
- Adjustable pressure insulated dual lance with trigger gun
04Optional Accessories5
- HX-0274Rain Cap. Protects boiler from moisture build-up when unit is left outside
- HX-0279Hour Meter. Displays the number of hours unit has been in operation
- HX-0280Adjustable Thermostat. Operator is able to adjust outlet water temperature between 98°-248°F
- HX-0281Hour Meter / Adjustable Thermostat. Displays the number of hours unit has been in operation and also the operator is able to adjust outlet water temperature between 98°-248°F
- HX-0300Skid Feet. Stationary applications
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
05Warranty
- 7 YearAR Pump
- 3 YearCoil
- 3 YearHonda Engine
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
06Documents & Downloads2
07Shipping & Ordering
This unit ships crated with a shipping weight of 530.00 lbs. Freight is quoted to your specific delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
