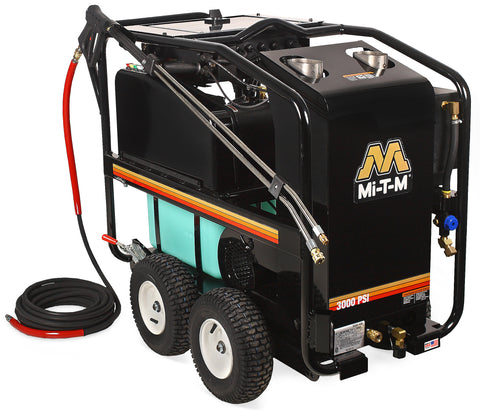

MI-T-M HSE-3004-0M30 HSE Series Electric Belt Drive

• Pump

  • External bypass system prevents heat accumulation
  • Factory-set unloader valve
  • Forged brass manifold construction
  • Integrated thermal relief valve
  • High-pressure detergent injection system

• Motor

  • Totally enclosed fan-cooled motor with thermal overload protection
  • Includes 35-foot power cord
  • ETL certified for US and Canada
  • NEMA L15-30P plug type

• Frame

  • Powder-coated steel frame with center-balanced lifting point
  • 13-inch flat-free tires

• Components

  • Top-fired heat exchanger designed for energy efficiency
  • Burner compatible with No. 1 or No. 2 diesel or kerosene; not approved for bio-fuel
  • 10.0-gallon fuel tank capacity
  • 2.10 gph fuel consumption rate
  • 294,000 BTU per hour output

• Miscellaneous

  • Maximum outlet temperature of 225°F
  • Temperature rise of 150°F/66°C above ambient

Specifications are supplied by the manufacturer and are subject to change without notice.

• Quick connect nozzles - 0°, 15°, 25° and 40°
• 50-foot x 3/8-inch steel wire-braided hose
• Adjustable pressure insulated dual lance with trigger gun

• HX-0070Auto Start/Stop. When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart
• HX-0072Auto Start/Stop - Steam. When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart; Reduces pressure to 350-PSI by adjusting unloader valve counter-clockwise, spray temperatures will rise 240°F above ambient with a maximum of 300°F
• HX-0074Auto Start/Stop - CAD Cell. When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart; Monitors burner for proper ignition
• HX-0076Auto Start/Stop - Steam - CAD Cell. When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart; Reduces pressure to 350-PSI by adjusting unloader valve counter-clockwise, spray temperatures will rise 240°F above ambient with a maximum of 300°F; Monitors burner for proper ignition
• HX-0086460V on 8.0 HP, 3 Phase Models. Upgrades 230V, 3-phase models to operate at 460V, 3-phase
• HX-0088Skid Feet. Stationary applications
• HX-0161Hour Meter. Displays the number of hours unit has been in operation
• HX-0294Adjustable Thermostat. Operator is able to adjust outlet water temperature between 86°-248°F

Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.

• 7 YearGeneral Pump
• 3 YearCoil
• 1 YearElectric Motor

Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
