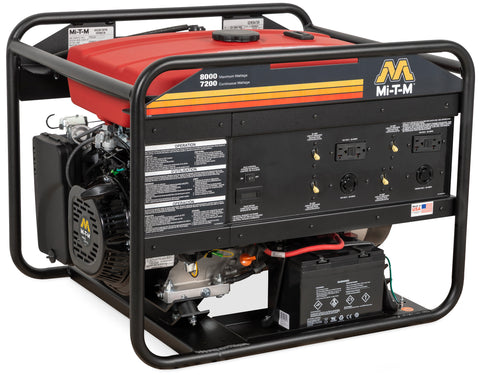

MI-T-M GEN-8000-MMM0 8000-Watt Gasoline Generator
This generator provides reliable power for demanding job sites. It features a 420cc OHV engine designed for consistent performance under load.
- Max Output8000watts
- Rated Output7200watts
- Engine420cc
- Fuel Capacity6.6gallons
- Net Weight222.00lbs.
This unit is not for sale in California.
01Features & Build
-
Alternator
- Total harmonic distortion (THD) is less than 5%
- Features copper windings
-
Frame
- Powder-coated wraparound steel construction
- Angled design with four neoprene vibration isolators
-
Components
- Control panel includes magnetic circuit breakers and GFCI-protected receptacles
- Equipped with a large low-tone muffler
- Includes fuel shut-off valve and integrated fuel gauge
- Features idle control and hour meter
- Heavy-duty industrial air cleaner
- Includes USDA/USFS-approved spark arrestors
- Electric start system with sealed battery included
- CSA certified with GFCI 5-20R, NEMA L14-30R, and NEMA L5-30R compliance
02Specifications17
| Max. AC Output | 8000 watts |
|---|---|
| Rated AC Output | 7200 watts |
| Displacement/ Engine | 420cc Mi-T-M OHV |
| Alternator | Brushless 120V/240V, 60Hz |
| Max. Amps (120V/240V) | 66.7/33.3 |
| Cont. Amps (120V/240V) | 60.0/30.0 |
| Receptacles | (2) 120V, 20A GFCI Duplex; (1) 120V, 30A Twist Lock; (1) 120V/240V, 30A Twist Lock |
| Circuit Breakers | (2) 20A Circuit Breakers, Single Pole; (1) 30A Toggle Circuit Breaker, Single Pole; (1) 30A Toggle Circuit Breaker, Double Pole |
| Rated Speed | 3600 RPM |
| Decibel Rating | 85.0 |
| Fuel Capacity | 6.6 gallons |
| Run Time (At Full Load) | 5.4 hours |
| Net Weight | 222.00 lbs. |
| Shipping Weight | 254.00 lbs. |
| Length | 29.00 in. |
| Width | 24.40 in. |
| Height | 22.50 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Warranty
- 3 YearMi-T-M Engine
- 2 YearAlternator
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
04Documents & Downloads2
05Shipping & Ordering
This unit ships crated with a shipping weight of 254.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
