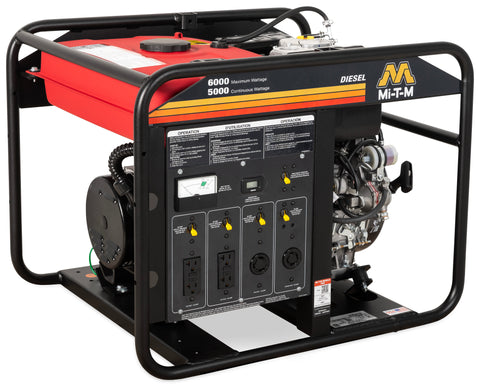

MI-T-M GEN-6000-1MKD 6000-Watt Diesel Generator
This diesel generator provides fuel-efficient, reliable power for remote jobsites. It features a 9.1 HP Kohler KD440 OHV engine for consistent performance under load.
- Peak Output6000watts
- Rated Output5000watts
- Engine9.1HP
- Fuel Capacity4.0gallons
- Net Weight280.00lbs.
01Features & Build
-
Alternator
- Total harmonic distortion (THD) maintained below 5%
- Constructed with copper windings
-
Frame
- Powder-coated steel wraparound frame for durability
- Six-point neoprene isolator system with angled design
-
Components
- Control panel includes magnetic circuit breakers and GFCI-protected receptacles
- Integrated fuel shut-off valve
- Fuel gauge for monitoring levels
- Digital display for voltage, hours, and frequency
- Industrial-grade air cleaner
- CSA certified with NEMA L14-20R, NEMA L5-30R, and GFCI 5-20R compliance
02Specifications17
| Max. AC Output | 6000 watts |
|---|---|
| Rated AC Output | 5000 watts |
| Horsepower/Engine | 9.1 HP Kohler KD440 OHV |
| Alternator | Brushless 120V/240V, 60Hz |
| Max. Amps (120V/240V) | 50.0/25.0 |
| Cont. Amps (120V/240V) | 41.6/20.8 |
| Receptacles | (2) 120V, 20A GFCI Duplex; (1) 120V/240V, 20A Twist Lock; (1) 120V, 30A Twist Lock |
| Circuit Breakers | (1) Main Circuit Breaker; (2) 20A Toggle Circuit Breakers, Single Pole; (1) 20A Toggle Circuit Breaker, Double Pole; (1) 30A Toggle Circuit Breaker, Single Pole |
| Rated Speed | 3600 RPM |
| Decibel Rating | 85.0 |
| Fuel Capacity | 4.0 gallons |
| Run Time (At Full Load) | 10.4 hours |
| Net Weight | 280.00 lbs. |
| Shipping Weight | 302.00 lbs. |
| Length | 29.00 in. |
| Width | 24.35 in. |
| Height | 22.50 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Warranty
- 3 YearRehlko Engine
- 2 YearAlternator
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
04Documents & Downloads2
05Shipping & Ordering
This unit ships crated with a shipping weight of 302.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
