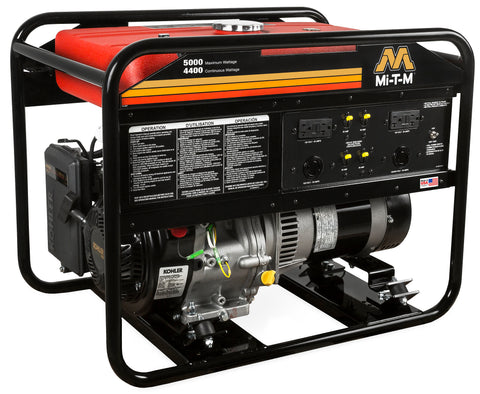

MI-T-M GEN-5000-0MK0 5000-Watt Gasoline Generator
This industrial generator provides reliable power for jobsite tools and lighting. It features a 277cc Kohler CH395 OHV engine for consistent performance under load.
- Peak Output5000watts
- Rated Output4400watts
- Engine277cc
- Fuel Capacity5.7gallons
- Net Weight176.00lbs.
01Features & Build
-
Alternator
- Total harmonic distortion (THD) under 5%
- Copper windings
- Brushless 120V/240V, 60Hz design
-
Frame
- Powder-coated wraparound steel construction
- Four-point angled neoprene vibration isolators
-
Components
- Control panel includes magnetic circuit breakers and GFCI-protected receptacles
- Large low-tone muffler
- Integrated fuel shut-off valve
- Fuel gauge for monitoring levels
- Industrial-grade air cleaner
- Full power switch
- USDA/USFS-approved spark arrestor
- CSA certified; includes GFCI 5-20R, NEMA L14-20R, and NEMA L5-30R outlets
02Specifications17
| Max. AC Output | 5000 watts |
|---|---|
| Rated AC Output | 4400 watts |
| Displacement/ Engine | 277cc Kohler CH395 OHV |
| Alternator | Brushless 120V/240V, 60Hz |
| Max. Amps (120V/240V) | 41.7/20.8 |
| Cont. Amps (120V/240V) | 36.7/18.3 |
| Receptacles | (2) 120V, 20A GFCI Duplex; (1) 120V/240V, 20A Twist Lock; (1) 120V, 30A Twist Lock |
| Circuit Breakers | (2) 20A Toggle Circuit Breakers, Single Pole; (1) 20A Toggle Circuit Breaker, Double Pole; (1) 30A Toggle Circuit Breaker, Single Pole |
| Rated Speed | 3600 RPM |
| Decibel Rating | 73.8 |
| Fuel Capacity | 5.7 gallons |
| Run Time (At Full Load) | 6.8 hours |
| Net Weight | 176.00 lbs. |
| Shipping Weight | 198.00 lbs. |
| Length | 29.00 in. |
| Width | 19.75 in. |
| Height | 22.50 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Optional Accessories1
- GX-0004Hour Meter. Displays number of hours the unit has been in operation
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
04Warranty
- 3 YearRehlko Engine
- 2 YearAlternator
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
05Documents & Downloads2
06Shipping & Ordering
This unit ships crated with a shipping weight of 198.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
