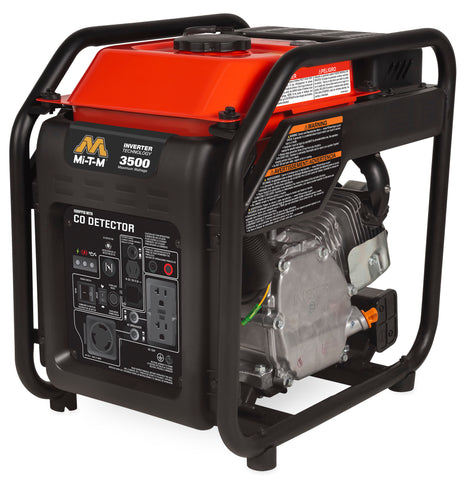

MI-T-M GEN-3500-IMM1 3500-Watt Gasoline Inverter
This inverter generator provides stable, quiet power for contractors and field technicians requiring clean electricity for sensitive electronics. It features a 212cc OHV engine designed for efficient fuel consumption and reduced noise output.
- Peak Output3500watts
- Rated Output3200watts
- Engine212cc
- Fuel Capacity1.8gallons
- Net Weight66.00lbs.
Gasoline models sold in California must be CARB compliant; consult factory for availability.
01Features & Build
-
Inverter Technology
- Compact design reduces overall weight, noise levels, and fuel usage
- Generates clean, commercial-grade AC power suitable for sensitive electronic devices
-
Alternator
- Maintains total harmonic distortion (THD) below 3%
- Constructed with copper windings for durability
-
Frame
- Removable access panels simplify maintenance for the spark plug, oil, and air cleaner
- Includes protective covers for all electrical outlets
-
Components
- Integrated carbon monoxide detector with automatic engine shutdown
- Includes 12V DC charging port
- Equipped with USB ports for mobile electronics
- Automatic idle control system
- Features a main circuit breaker
- Includes USDA/USFS-approved spark arrestor
- CSA certified for Canadian markets
02Specifications15
| Max. AC Output | 3500 watts |
|---|---|
| Rated AC Output | 3200 watts |
| Displacement/ Engine | 212cc Mi-T-M OHV |
| Max. Amps (120V) | 29.2 |
| Cont. Amps (120V) | 26.7 |
| Receptacles | (1) 120V, 20A GFCI Duplex; (1) 120V, 30A Twist Lock; (1) 12V DC 8.3A |
| Rated Speed | 3600 RPM |
| Decibel Rating | 76.0 |
| Fuel Capacity | 1.8 gallons |
| Run Time (at half load) | 8.0 hours |
| Net Weight | 66.00 lbs. |
| Shipping Weight | 77.00 lbs. |
| Length | 19.80 in. |
| Width | 13.80 in. |
| Height | 19.50 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Warranty
- 1 Year
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
04Documents & Downloads2
05Shipping & Ordering
This unit ships crated with a shipping weight of 77.00 lbs. Freight is quoted to your specific delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
