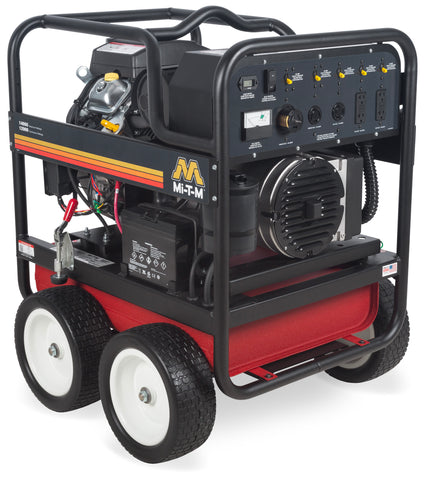

MI-T-M GEN-14000-1MME 14000-Watt Gasoline Generator
This generator provides high-output power for demanding job sites. It is built for contractors requiring portable electricity, featuring a 670cc OHV engine for consistent performance.
- Peak Watts14000watts
- Rated Watts12000watts
- Engine670cc
- Fuel Capacity13.2gallons
- Net Weight493.00lbs.
01Features & Build
-
Alternator
- Total harmonic distortion (THD) under 5%
- Copper winding construction
-
Engine
- Electric start system with included sealed battery
-
Frame
- Reinforced powder-coated steel chassis
- 13-inch flat-free tires
-
Components
- Control panel with magnetic circuit breakers and GFCI-protected receptacles
- Low-tone muffler design
- Integrated fuel gauge
- Automatic idle control
- Digital voltmeter and hour meter
- Industrial-grade air cleaner
- USDA/USFS-approved spark arrestor
- Certified to GFCI 5-20R, NEMA 14-50R, NEMA L14-30R, and NEMA L5-30R standards
02Specifications17
| Max. AC Output | 14000 watts |
|---|---|
| Rated AC Output | 12000 watts |
| Displacement/ Engine | 670cc Mi-T-M OHV |
| Alternator | Brushless 120V/240V, 60Hz |
| Max. Amps (120V/240V) | 116.7/58.3 |
| Cont. Amps (120V/240V) | 100.0/50.0 |
| Receptacles | (2) 120V, 20A GFCI Duplex; (1) 120V, 30A Twist Lock; (1) 120V/240V, 30A Twist Lock; (1) 120V/240V, 50A |
| Circuit Breakers | (2) 20A Toggle Circuit Breakers, Single Pole; (1) 30A Toggle Circuit Breaker, Single Pole; (1) 30A Toggle Circuit Breaker, Double Pole; (1) 50A Toggle Circuit Breaker, Double Pole |
| Rated Speed | 3600 RPM |
| Decibel Rating | 80.0 |
| Fuel Capacity | 13.2 gallons |
| Run Time (At Full Load) | 8.0 hours |
| Net Weight | 493.00 lbs. |
| Shipping Weight | 553.00 lbs. |
| Length | 31.50 in. |
| Width | 30.50 in. |
| Height | 37.50 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Optional Accessories2
- GX-0003Skid Feet. For stationary applications
- GX-000550-Amp Twist Lock Receptacle. Marine receptacle for routine marine applications
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
04Warranty
- 3 YearMi-T-M Engine
- 2 YearAlternator
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
05Documents & Downloads2
06Shipping & Ordering
This unit ships crated with a shipping weight of 553.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
