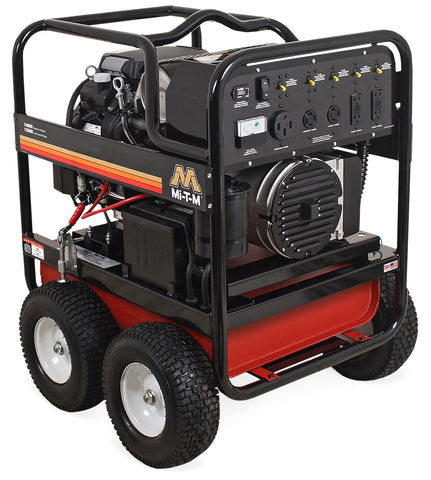

MI-T-M GEN-14000-1MHE 14000-Watt Gasoline Generator
This generator provides reliable power for demanding job sites, featuring a 688cc Honda GX630 OHV engine for consistent performance.
- Peak Watts14000watts
- Rated Watts12000watts
- Engine688cc
- Run Time8.0hours
- Net Weight508.00lbs.
01Features & Build
-
Alternator
- Total harmonic distortion (THD) under 5%
- Copper windings
-
Engine
- Electric start system with included sealed battery
-
Frame
- Reinforced powder-coated steel construction
- 13-inch flat-free tires
-
Components
- Control panel includes magnetic circuit breakers and GFCI-protected receptacles
- Large low-tone muffler
- Integrated fuel gauge
- Automatic idle control
- Digital voltmeter and hour meter
- Industrial-grade air cleaner
- USDA/USFS-approved spark arrestor
- CSA certified with NEMA-compliant receptacles
02Specifications17
| Max. AC Output | 14000 watts |
|---|---|
| Rated AC Output | 12000 watts |
| Displacement/ Engine | 688cc Honda GX630 OHV |
| Alternator | Brushless 120V/240V, 60Hz |
| Max. Amps (120V/240V) | 116.7/58.3 |
| Cont. Amps (120V/240V) | 100.0/50.0 |
| Receptacles | (2) 120V, 20A GFCI Duplex; (1) 120V, 30A Twist Lock; (1) 120V/240V, 30A Twist Lock; (1) 120V/240V, 50A |
| Circuit Breakers | (2) 20A Toggle Circuit Breakers, Single Pole; (1) 30A Toggle Circuit Breaker, Single Pole; (1) 30A Toggle Circuit Breaker, Double Pole; (1) 50A Toggle Circuit Breaker, Double Pole |
| Rated Speed | 3600 RPM |
| Decibel Rating | 77.5 |
| Fuel Capacity | 13.2 gallons |
| Run Time (At Full Load) | 8.0 hours |
| Net Weight | 508.00 lbs. |
| Shipping Weight | 568.00 lbs. |
| Length | 31.50 in. |
| Width | 30.50 in. |
| Height | 37.50 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Optional Accessories2
- GX-0003Skid Feet. For stationary applications
- GX-000550-Amp Twist Lock Receptacle. Marine receptacle for routine marine applications
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
04Warranty
- 3 YearHonda Engine
- 2 YearAlternator
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
05Documents & Downloads2
06Shipping & Ordering
This unit ships crated with a shipping weight of 568.00 lbs.; freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
