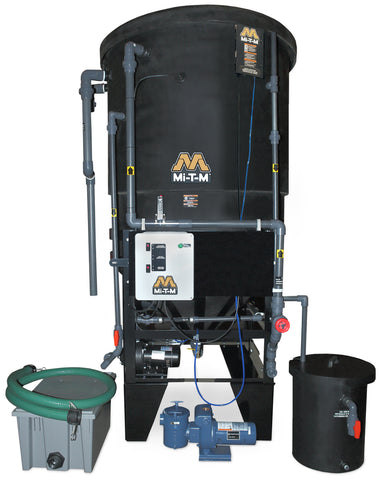

MI-T-M Clarifier & Oil/Water Separators - WCL-30Series WCL-30D-0M10
Part number: WCL-30D-0M10
This item is built or sourced to order. Send us the quantity and specs you need and our team will get you a firm quote and lead time — usually within one business day.
Request a quote
Prefer to talk it through? Contact our team.
- Trade & volume pricing for repeat orders
- Application support from our engineering team
- Fast turnaround on quotes and lead times
This clarifier removes accumulated solids from wastewater to improve the effectiveness of downstream water treatment systems. It is designed for industrial wash bays and maintenance facilities requiring a 425 square foot oil coalescing area.
- Flow Rate30GPM
- Tank Capacity600gallon
- Power230V
- Current13.0A
01Features & Build
-
System Components
- 600-gallon cone-bottom clarifier tank
- Corona discharge ozone injection system
- Solids separation chamber equipped with bag filter and decanting
- Oil skimmer and decanter assembly
- 1.0 HP surface-mount sump pump
- ETL listed NEMA-4 rated corrosion-resistant control panel
-
Recommended Applications
- Rental yards and equipment dealers
- Heavy equipment and trucking facilities
- Military bases and shipyards
- Diesel repair and engine manufacturing
- Forklift washing and aircraft maintenance
- Municipal and state DOT operations
- Oil field service sites
-
Model Specifications
- WCL-30S-0M10: 230V, 1Ø, 8.0A, 73 sq. ft. oil coalescing area
- WCL-30D-0M10: 230V, 1Ø, 13.0A, 425 sq. ft. oil coalescing area with ozone injection
-
Pit System Requirements
- Proper pit design is the initial stage for effective wash water treatment and is required for functional recycle systems.
02Specifications7
| Flow Rate | 0-30 GPM |
|---|---|
| Clarifier Tank | 600 gallon |
| Net Weight | 0.00 lbs. |
| Shipping Weight | 0.00 lbs. |
| Length | 63.00 in. |
| Width | 75.00 in. |
| Height | 106.00 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Models & Part Numbers2
- WCL-30S-0M10
- WCL-30D-0M10
04Documents & Downloads1
05Shipping & Ordering
This unit ships crated and freight is quoted to the delivery address.
