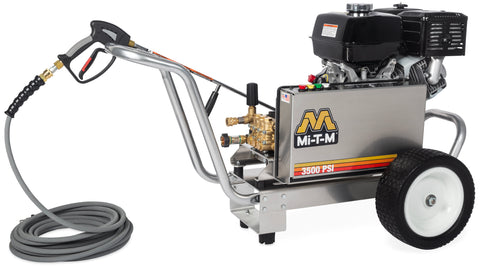

MI-T-M CBA-3504-1MAH CBA Aluminum Series Gasoline Belt Drive
This industrial pressure washer provides the cleaning force required for heavy grime and surface preparation. It is designed for contractors who need a portable, lightweight unit built on a corrosion-resistant aluminum frame.
- Pressure3500psi
- Flow3.7gpm
- Engine389cc
- Net Weight165.00lbs
01Features & Build
-
Pump
- Includes Mi-T-M Pressure Relief Start system
- Features a forged brass manifold
- Integrated thermal relief valve
- Water filter with clear inspection sleeve
- ETL certified for US safety standards
-
Frame
- Constructed with corrosion-resistant aluminum
- Patented vibration isolation plate
- Two-piece belt guard assembly
- 13-inch flat-free tires
02Specifications11
| PSI | 3500 |
|---|---|
| GPM | 3.7 |
| Displacement/ Engine | 389cc Honda GX390 OHV |
| Pump | AR |
| Unloader | Mi-T-M, Adjustable Pressure |
| Lance | 48 in. |
| Net Weight | 165.00 lbs. |
| Shipping Weight | 215.00 lbs. |
| Length | 47.00 in. |
| Width | 27.50 in. |
| Height | 28.50 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03What’s Included3
- Quick connect nozzles – 0°, 15°, 25° and 40°
- 50-foot x 3/8-inch non-marking hose
- Insulated trigger gun
04Optional Accessories2
- CX-0082External Bypass System. Allows more water into the system to protect from heat build-up
- CX-0134Electric Start. Sealed battery included - For easy starting
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
05Warranty
- 7 YearAR Pump
- 3 YearHonda Engine
- 1 YearMi-T-M Unloader
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
06Documents & Downloads2
07Shipping & Ordering
This unit ships crated with a shipping weight of 215.00 lbs; freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
