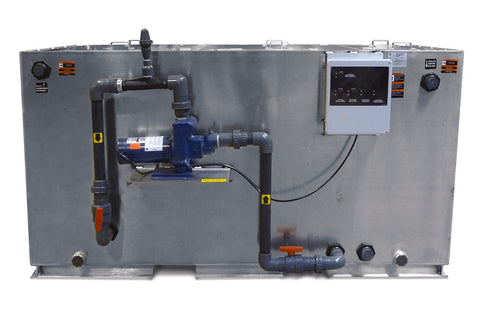

MI-T-M Biological Recycle/Discharge Systems - BIO-20Series BIO-20D-0M10

• System Components

  • Bioreaction tank
  • Biofilm generative media
  • Venturi aeration system
  • Pressurized tank assembly
  • Pressure manifold
  • Included 1/2 HP submersible sump pump
  • Marine aluminum construction with sloped bottom
  • ETL listed NEMA-4 rated corrosion-proof control panel

• Recommended Applications

  • Rental yards and heavy equipment dealers
  • Golf courses and municipal DOT facilities
  • Trucking, forklift, and aircraft maintenance operations
  • Diesel repair shops and engine manufacturing facilities
  • Military bases, shipyards, and oil field sites

• Pit System Requirements

  • Untreated wash water must be directed into a properly sized pit system prior to treatment. A compatible pit system is required for effective wash water recycling and processing.

Specifications are supplied by the manufacturer and are subject to change without notice.

• WX-0014Pinch Valve Assembly. Pinch valve, bladder style (used on cone bottom tanks), 2 inch, 230V, single phase
• WX-0037pH Control System, 230V. For when pH adjustment is needed
• WX-0039Pinch Valve Assembly. Pinch valve, bladder style (used on cone bottom tanks), 2 inch, 120V, single phase
• WX-0102pH Control System, 120V. For when pH adjustment is needed
• WX-0128Hour Meter. Displays the number of hours unit has been in operation
• WX-0133Coagulation System. Used in heavy solids applications to help dirt and solids settle for easy removal
• WX-0134Dual pH Control System, 230V. Two set points where pH can be adjusted
• WX-0135Dual pH Control System, 115V. Two set points where pH can be adjusted
• WX-0029550-Gallon Product Tank Expansion. For when larger volume of usable water is needed
• WX-0040Ozone. For specialized applications where sterilization of the waste stream is desired, 230V, single phase
• WX-0089Ozone. For specialized applications where sterilization of the waste stream is desired, 230V, single phase
• WX-0100BIO Sump Pump Conversion. Customized option, converts submersible pump to surface-mount sump pump
• WX-0120High Solids Media. Allows for debris to travel easily through media with vertical design
• WX-0124Epoxy-Lined Tank. High solid polyamide epoxy-lined tank is chemical and corrosion-resistant
• WX-0125Epoxy-Lined Tank. High solid polyamide epoxy-lined tank is chemical and corrosion-resistant
• WX-0136Heater, 230V. Promotes heat for microbes, powered from main box, additional 20A required
• WX-0137Heater, 460V. Promotes heat for microbes, powered from main box, additional 20A required
• WX-0138Heater, 230V. Promotes heat for microbes, powered from main box, additional 20A required
• WX-0139Heater, 460V. Promotes heat for microbes, powered from main box, additional 20A required
• WX-0142250-Gallon Auxiliary Poly Tank. Allows you to treat the BIO water with ozone in a separate poly tank
• WX-0046460V. Changes 230V model to 460V, 3 phase
• WX-0047Ozone. For specialized applications where sterilization of the waste stream is desired, 208-230V, 3 phase
• WX-0048Ozone. For specialized applications where sterilization of the waste stream is desired, 460V, 3 phase
• WX-0049460V. Changes 230V model to 460V, 3 phase
• WX-0090Ozone. For specialized applications where sterilization of the waste stream is desired, 208-230V, 3 phase
• WX-0091Ozone. For specialized applications where sterilization of the waste stream is desired, 460V, 3 phase

Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.

• BIO-20D-0M10
• BIO-20D-0M30
• BIO-20R-0M10
• BIO-20R-0M30
• BIO-20R-0M11
• BIO-20R-0M31

• Product Sheet (PDF)
