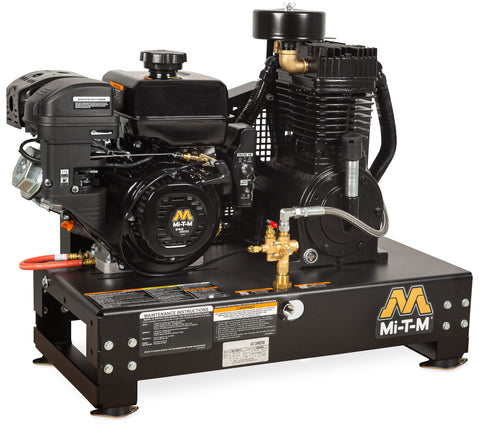

MI-T-M AM2-SM09-B Base-Mount Two Stage Gasoline
This base-mount air compressor is designed for stationary industrial applications requiring high-pressure air. It features a 300cc OHV engine for consistent performance in demanding environments.
- Flow17.2cfm
- Pressure175psi
- Engine300cc
- Net Weight309.00lbs.
01Features & Build
-
Compressor Pump
- Cast iron pump construction
- Splash lubrication system
- Stainless-steel braided discharge hose
- Large canister intake filter
- Oil level sight glass
-
Frame
- 3/16-inch base plate for vibration reduction
- Powder-coated two-piece belt guard
- Removable base plate for flexible mounting
-
Components
- Regulator and dual gauges for tank and outlet pressure
- Manual drain valve
- 16-1/2-inch flywheel
- Pilot valve unloader
- Start/stop control set at 145 to 175-PSI
- ASME UM certified
02Specifications9
| CFM @ PSI | 17.2 @ 175 |
|---|---|
| Displacement/ Engine | 300cc Mi-T-M OHV |
| Tank Size | Base-Mount |
| Engine Idle Control | Pneumatic |
| Net Weight | 309.00 lbs. |
| Shipping Weight | 379.00 lbs. |
| Length | 36.50 in. |
| Width | 21.00 in. |
| Height | 32.00 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Optional Accessories3
- AX-0017Electric Start. For easy starting - sealed battery, tray, box and cables included
- AX-0077Battery Box and Tray. Attaches to engine side of unit
- AX-0104Remote Start/Choke, Sealed Cable. 7-foot wire extension for key switch
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
04Warranty
- 3 YearMi-T-M Engine
- 2 YearPump Exchange
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
05Documents & Downloads2
06Shipping & Ordering
This unit ships crated with a shipping weight of 379.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
