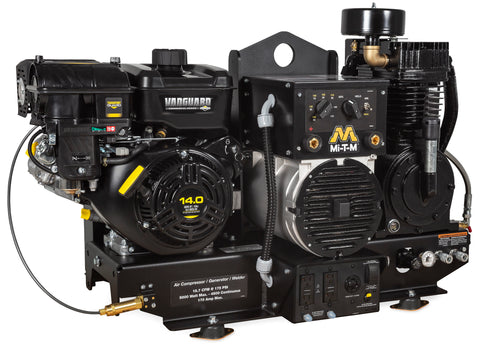

MI-T-M AGW-SV14-B Two Stage Gasoline Base-Mount
This multi-function unit integrates an air compressor, generator, and welder to streamline job site equipment requirements. It is designed for contractors needing a compact, engine-driven solution powered by a 408cc Vanguard OHV engine.
- Flow16.4cfm
- Pressure175psi
- Engine408cc
- Net Weight404lbs
01Features & Build
-
Compressor Pump
- Cast iron construction
- Splash lubrication system
- Stainless-steel braided discharge hose
- Large canister intake filter
- Integrated oil level sight glass
-
Generator
- Brush-type 2-pole 120V/240V alternator
- Total harmonic distortion (THD) under 6%
- 100% copper windings
- GFCI 5-20R and NEMA L14-20R certified receptacles
-
Welder
- Amperage selection switch with 170A or 220A maximum settings
-
Frame
- Powder-coated two-piece belt guard
-
Components
- Regulator with dual gauges for tank and outlet pressure
- 150-PSI maximum rated regulator
- Manual drain valves
- 16.5-inch flywheel
- Pilot valve unloader
- Electric start (battery and cables not included)
-
Welder Mode
- DC current output only
- Requires engine at full throttle
- Selector switch must be set to full throttle position
02Specifications21
| Displacement/ Engine | 408cc Vanguard OHV |
|---|---|
| Rated Speed | 3600 RPM |
| CFM @ 90 PSI | 16.4 |
| CFM @ 175 PSI | 15.7 |
| Tank Size | Not Applicable - Base-Mount Model |
| Max. AC Output | 5000 watts |
| Rated AC Output | 4500 watts |
| Alternator Wattage: Cont. On-Load @ 90 PSI | 3000 watts |
| Alternator Wattage: Cont. On-Load @ 175 PSI | 2500 watts |
| Frequency/Voltage | 60Hz/120V/240V |
| Max. Amps (120V/240V) | 41.5/20.8 Off-Load |
| Cont. Amps (120V/240V) | 37.5/18.8 Off-Load |
| Receptacles | (2) 120V, 20A GFCI Duplex; (1) 120V/240V, 20A Twist Lock |
| Duty Cycle (10 Min. Run Time) | 150A @ 100% |
| DC Voltage | 50-170A Working Range |
| Fuel Tank | 1.53-gallon |
| Net Weight | 404.00 lbs. |
| Shipping Weight | 469.00 lbs. |
| Length | 49.00 in. |
| Width | 22.00 in. |
| Height | 28.50 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Optional Accessories3
- AX-0070Battery Tray, Box and 2-Foot of Cables. Attaches to engine side of unit
- AX-0016Battery, Battery Tray, Box and 2-Foot Cables. Attaches to engine side of unit
- AX-0100Remote Start/Choke, Sealed Cable. 7-foot wire extension for key switch
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
04Warranty
- 3 YearVanguard Engine
- 2 YearAlternator
- 2 YearPump Exchange
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
05Documents & Downloads2
06Shipping & Ordering
This unit ships crated with a shipping weight of 469.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
