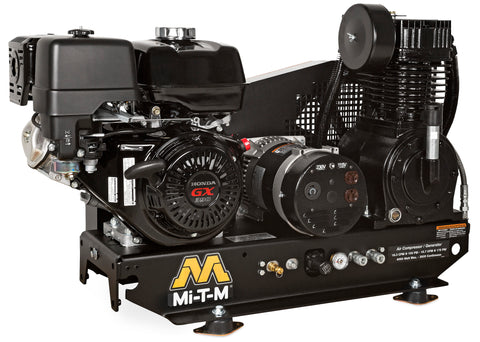

MI-T-M AG2-SH13-B Base-Mount Two Stage Gasoline Combination
This gasoline-powered air compressor and generator combination provides dual-utility power for remote jobsites. It is built on a heavy-duty 3/16-inch steel base plate to minimize vibration during operation.
- Airflow15.7cfm
- Pressure175psi
- Max Watts4000watts
- Engine389cc
- Net Weight325.00lbs
01Features & Build
-
Compressor Pump
- Cast iron pump construction
- Splash lubrication system
- Stainless-steel braided discharge hose
- High-capacity canister intake filter
- Integrated oil level sight glass
-
Generator
- Brushless alternator design
- Total harmonic distortion (THD) under 6%
- 100% copper windings
- Includes (2) NEMA 5-20R 120V 20A and (1) NEMA L6-20R 240V 20A receptacles
-
Frame
- 3/16-inch base plate for vibration reduction
- Powder-coated two-piece belt guard
-
Components
- Regulator with dual gauges for tank and outlet pressure monitoring
- 150-PSI maximum rated regulator
- Manual drain valves for routine maintenance
- 12 or 16½-inch flywheel
- Pilot valve unloader
02Specifications10
| CFM @ PSI | 15.7 @ 175 |
|---|---|
| Alternator Wattage: Max. Output | 4000 watts |
| Alternator Wattage: Cont. with Comp. On-Load | 2300 watts |
| Alternator Wattage: Cont. with Comp. Off-Load | 3500 watts |
| Displacement/ Engine | 389cc Honda GX390 OHV |
| Net Weight | 325.00 lbs. |
| Shipping Weight | 390.00 lbs. |
| Length | 47.00 in. |
| Width | 22.00 in. |
| Height | 28.00 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Optional Accessories2
- AX-0063Lifting Hook. For easier portability
- AX-0068Idle Down. When activated it automatically throttles down engine to conserve fuel, start/stop control set at 145 to 175-PSI
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
04Warranty
- 3 YearHonda Engine
- 2 YearAlternator
- 2 YearPump Exchange
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
05Documents & Downloads2
06Shipping & Ordering
This unit ships crated with a shipping weight of 390.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
