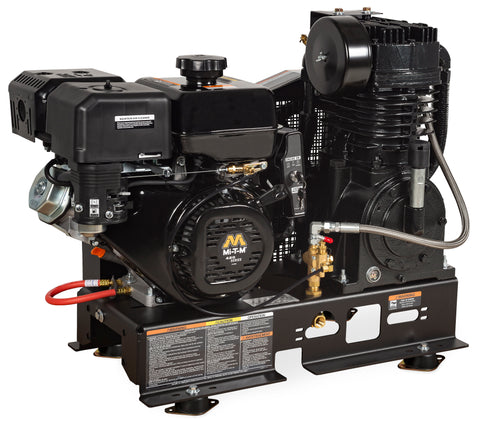

MI-T-M ABS-14M-B Base-Mount Two Stage Gasoline
This base-mount air compressor is engineered for installation on service trucks and trailers. It features a heavy-duty 420cc OHV engine designed for consistent pneumatic power in mobile applications.
- Flow29.0cfm
- Pressure175psi
- Engine420cc
- Net Weight215.00lbs
01Features & Build
-
Compressor Pump
- Cast iron pump construction
- Splash lubrication system
- Stainless-steel braided discharge hose
- Large canister intake filter
- Oil level sight glass
-
Engine
- Electric start system (battery and cables not included)
-
Frame
- 3/16-inch base plate for vibration reduction
- Powder-coated two-piece belt guard
- Removable base plate for flexible mounting
-
Components
- Regulator with dual gauges for tank and outlet pressure
- ASME-certified safety valves
- 16 1/2-inch flywheel
- Manual tank drain valve
- 1/2-inch discharge port
- Start/stop control set at 145 to 175-PSI
02Specifications9
| CFM @ PSI | 29.0 @ 175 |
|---|---|
| Displacement/ Engine | 420cc Mi-T-M OHV |
| Tank Size | Base-Mount |
| Engine Idle Control | Pneumatic |
| Net Weight | 215.00 lbs. |
| Shipping Weight | 279.00 lbs. |
| Length | 36.50 in. |
| Width | 19.00 in. |
| Height | 28.00 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Optional Accessories1
- AX-0091Remote Start/Choke, Sealed Cable. 7-foot wire extension for key switch
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
04Warranty
- 3 YearMi-T-M Engine
- 2 YearPump Exchange
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
05Documents & Downloads2
06Shipping & Ordering
This unit ships crated with a shipping weight of 279.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
