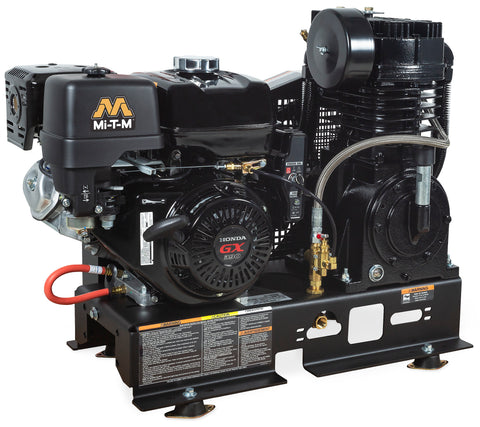

MI-T-M ABS-13H-B Base-Mount Two Stage Gasoline

$5,389.00

This base-mount compressor is engineered for trailer and service truck integration. It features a heavy-duty 389cc Honda GX390 engine for reliable field performance.

Flow29.0cfm
Pressure175psi
Engine389cc
Net Weight215.00lbs

Receiver tank required for operation.

01Features & Build

Compressor Pump
- Cast iron construction
- Splash lubrication system
- Stainless-steel braided discharge hose
- Large canister intake filter
- Oil level sight glass
Engine
- Electric start (battery and cables not included)
Frame
- 3/16-inch base plate for vibration reduction
- Powder-coated two-piece belt guard
- Removable base plate for flexible mounting
Components
- Regulator with dual gauges for tank and outlet pressure
- ASME-rated safety valves
- 16 1/2-inch flywheel
- Manual tank drain valve
- 1/2-inch discharge port
- Pneumatic start/stop control set at 145 to 175 PSI

02Specifications9

CFM @ PSI	29.0 @ 175
Displacement/ Engine	389cc Honda GX390 OHV
Tank Size	Base-Mount
Engine Idle Control	Pneumatic
Net Weight	215.00 lbs.
Shipping Weight	279.00 lbs.
Length	36.50 in.
Width	19.00 in.
Height	28.00 in.

Specifications are supplied by the manufacturer and are subject to change without notice.

03Optional Accessories1

AX-0090Remote Start/Choke, Sealed Cable. 7-foot wire extension for key switch

Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.

04Warranty

3 YearHonda Engine
2 YearPump Exchange

Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.

05Documents & Downloads2

06Shipping & Ordering

This unit ships crated with a shipping weight of 279.00 lbs. Freight is quoted to the delivery address.

Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
