Husqvarna Blastrac 2-48DS | STEEL BLASTER BLASTRAC 2-48DS | 60 Hz | GLOBAL | 970692502
Part Number: 970 69 25-02 (970692502)

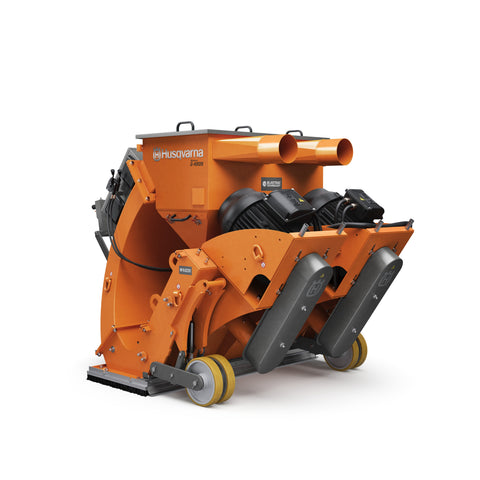

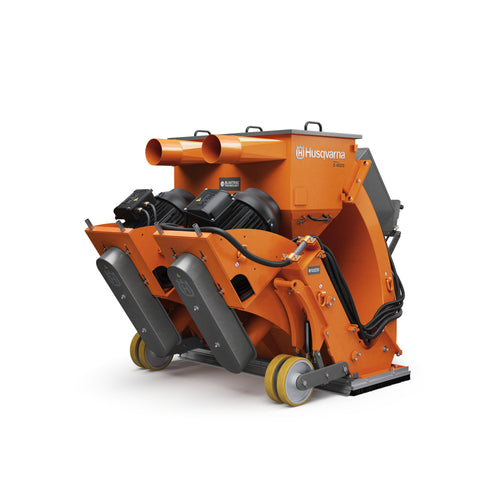

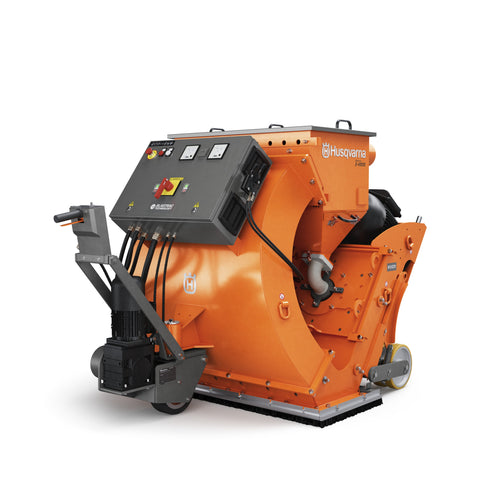

The Husqvarna Blastrac 2-48DS (Article 970692502) is the largest walk-behind shotblasting machine in the current range. Engineered for heavy-duty applications, this 60 Hz unit is designed for surface preparation on concrete, stone, asphalt, and steel. The machine features two high-output blast motors and an integrated height-adjustment system to facilitate efficient transportation.
Primary Applications:
- Floor preparation and renovation
- Maintenance and decorative surface finishing
- Grip improvement for industrial and commercial surfaces
Product Features

Work virtually dust free
The shot blasting machine has to be connected to a Husqvarna industrial dust collector to create a closed circut. This means that you are able to work virtually dust free, creating a better work environment.

Self-propelled for your comfort
This machine is equipped with a driver motor for ease of use. It also improves productivity and promotes a more even and consistent blast pattern and surface profile.

Powerful
With its two powerful blast motors, it creates a consistent blast pattern and surface profile.

Ergonomic
This self-propelled shot blasting machine features drive controls on the steering handle.

Resource smart solution
Reusing the abrasives makes this a resource-smart solution. Also no water is used and wasted and no chemicals are used during the blasting process.
| Motor | |
|---|---|
| Output power | 70.5 hp |
| Voltage | 460 V |
| Frequency | 60 Hz |
| Rated Current | 125 A |
| Phases | 3 ph |
| Power Source | Corded |
| Product data | |
| Working width | 48 in |
| Dust hose connection | 2 x 6 in |
| Steel shot consumption | 150 g/m² |
| Transmission | |
| Type of operation | Pull |
| Dimensions | |
| Product size length | 95 in |
| Product size width | 56 in |
| Product size height | 57 in |
| Weight | 2,976 lbs |
| Packaging length (Calc) | 59.055 in |
| Packaging width (Calc) | 90.551 in |
| Packaging height (Calc) | 68.898 in |
- 535109602 — HOUSING Blast 2-48 DS
- 533278801 — LINER REAR LINER (LH) - 2-48DS
- 533276701 — LINER REAR LINER (RH) - 2-48DS
- 533232501 — LINER TOP LINER - 2-48DS
- 533227301 — LINER INNER LINER - 2-48DS
- 533223401 — LINER SIDE LINER - 2-48DS
- 533379101 — LINER REBOUND SIDE LINER (LH) - 2-48DS
- 533355701 — LINER REBOUND SIDE LINER (RH) - 2-48DS
- 533294701 — LINER REBOUND TOP LINER - 2-48DS
- 533329801 — LINER REBOUND BOTTOM LINER - 2-48DS
- 533295801 — LINER LINER FRONT LEFT - 2-48DS
- 533539602 — COVER FRONT LH
- 533356601 — LINER LINER FRONT RIGHT - 2-48DS
- 533739202 — COVER FRONT RH
- 534669002 — FIXING PLATE LINER FIXING BLOCK
- 533589302 — MOUNTING PLATE CONTROL CAGE WITH LINER
- 533117802 — SEPARATOR 2-48DS
- 533322502 — LID COVER
- 533420302 — ADJUSTER HORIZONTAL 2-48DS
- 533375802 — ADJUSTER VERTICAL 2-48DS
- 533252702 — FIXING PLATE TOP FIX 2-48DS
- 533170201 — HANDLE
- 533152102 — DEFLECTOR 2-48DS
- 533256102 — TRAY SEPARATOR 2-48DS
- 534391301 — CLAMP FOR SEPARATOR TRAY
- 533338402 — ADJUSTER AIRFLOW 2-48DS
- 535232902 — FRAME REBOUND PLENUM
- 535251902 — SWIVEL BRACKET
- 534313001 — ROLLER BEARING 32008X-Q
- 534314501 — BEARING COVER PLATE
- 546286001 — DRIVE WHEEL BRACKET
- 531474201 — BEARING 1-1/8 TF
- 534907101 — WHEEL TRACTION
- 534528801 — DRIVE SHAFT 2-48DS
- 546285901 — DRIVE MOTOR
- 534642001 — HUB Rear retainer
- 534640601 — SPROCKET IDLER
- 546615201 — RETAINER SPROCKET
- 533256401 — PIN QUICK RELEASE
- 534529901 — SPROCKET DRIVE WHEEL
- 535148202 — CHAIN GUARD
- 535247702 — HANDLE STEERING
- 535152602 — PLATE Control box top
- 535152302 — BOX Control
- 534668101 — SWITCH Limit switch
- 534612901 — HANDLE GRIP 25mm
- 535251702 — LEVER Switch
- 533622701 — GAS SPRING PRESSION 1500N
- 534929601 — V-RING 400650
- 534929701 — V-RING 400850
- 535242202 — FRAME Side LH
- 535242302 — FRAME Side RH
- 533850701 — PUSH BUTTON 16mm WHITE 1-10DPS75, 1-10DSG1, 1-8DPS30
- 533734601 — POTENTIOMETER POTENTIOMETER (COMPLETE) - 1-8DPS30
- 534387302 — COVER CHAIN GUARD
- 533318901 — BUSH DISTANCE BUSH DRIVE WHEEL
- 533930301 — LINK 1/2"x5/16" ISO
- 534024703 — CHAIN SIMPLEX ROLLER 1/2"x5/16" ISO W=19mm L=1m
- 534385002 — BRACKET CASTOR
- 535231802 — WHEEL BRACKET REAR CASTOR
- 535202102 — LEVER
- 534364101 — PIN BRACKET LEVER
- 534664101 — PIN LEVER
- 534636201 — PIN HOUSING
- 534942001 — PIN WHEEL
- 534424901 — PIN Cylinder pin
- 533336501 — WHEEL IDLER WHEEL - 2-48DS
- 534775101 — GAS SPRING PRESSION 4000N
- 533367902 — PLATE CAGE CLAMP 2-48DS
- 546698901 — CLAMP CAGE
- 533147101 — CONTROL CAGE EBE 500
- 534624901 — SCREW Hexagon socket head cap screw M12x50
- 533288701 — WASHER M12 SPRING LOCK WASHER
- 533836901 — WASHER M12 PLAIN WASHER (heavy)
- 533264301 — IMPELLER EBE 500
- 533440901 — BLADE SET OF 6 PCS
- 534340401 — WHEEL Blastwheel
- 533017101 — ADAPTER BLASTWHEEL TAPERLOCK ADAPTER
- 533259701 — BUSHING TAPER LOCK BUSHING
- 533211201 — SEAL FRONT 2-48DS
- 533299901 — SEALING RING
- 533665802 — BEARING UNIT 2-48DS, 2-48DSP HVA Grey
- 535104602 — BACKPLATE BELT GUARD BOTTOM
- 534892201 — BUSH Taper lock bush 2012-32
- 533287601 — PULLEY HTD 40-8M-50 TL2012
- 533222501 — PULLEY HTD 44-8M-50 TL2012
- 533430001 — DRIVE BELT HTD 2-48DS
- 534321802 — BELT GUARD GUARD
- 533287501 — PULLEY HTD - 2-45D
- 533089001 — BUSHING TAPERLOCK 2012-42
- 535212902 — BRACKET MOTOR
- 533334902 — SPACER PLATE BLAST MOTOR FILL-UP
- 546144601 — MOTOR BLAST 25kW HVA Black, RAL 9005
- 535108902 — TOOL LEVER FOR REMOVAL OF BLADES
- 531457301 — MAGNET
- 531457401 — MAGNET
- 533332701 — BRUSH FRONT & REAR BRUSH - 2-48DS
- 533225201 — BRUSH SIDE BRUSH - 2-48DS
- 535179902 — BAR Flow
- 533294801 — RUBBER SKIRT REAR 2-48DS
- 534295602 — ADJUSTER Airflow
- 533406601 — VALVE ASSY Spindle 2-20DT & 2-30DS Left side
- 533437701 — VALVE ASSY Spindle 2-20DT & 2-30DS Right side
- 534571701 — TUBE Feed spout grey
- 534410002 — BRACKET Control cable
- 534028801 — PIVOT PIN ABRASIVE CONTROL CABLE 1-10D/DSMKIII,1-15DSG1
- 533215401 — CONTROL CABLE ABRASIVE
- 533352001 — CONTROL CABLE ABRASIVE
- 535152902 — WALL BRACKET CONTROL LEVER
- 533839501 — CONTROL LEVER ABRASIVE CONTROL
