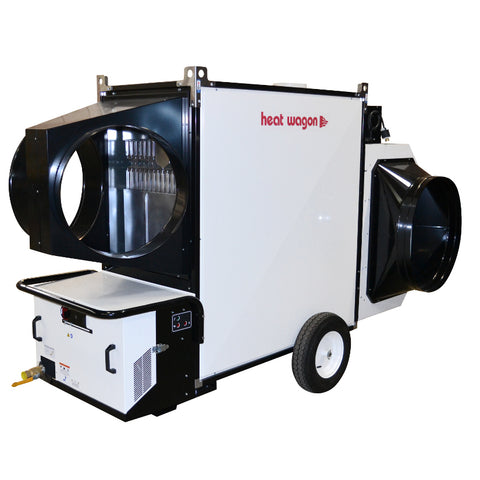

Heat Wagon | VG1100 Indirect Gas-Fired Heater 1,000,000 BTU/hr
The Heat Wagon VG1100 is rated at 1,000,000 BTU/hr on vapor propane or natural gas, moving 11,200 CFM. A sealed heat exchanger flues combustion outside, delivering clean, dry heat for enclosed and occupied spaces, drywall, painting and concrete curing.
- Output1MBTU/hr
- Airflow11,200CFM
- FuelDual Fuel
- Weight1,160lbs
01Features & Build
-
Features
- 1,000,000 max BTU output
- CSA
- Reliable Riello burner
- Remote thermostat
- Wheels for easy portability
- Long lasting stainless steel combustion chamber
- High static centrifugal blower
- 100% dry heat, clean of combustion by-products
- 11,200 CFM
- 110 degree temperature rise
- Recirculation capability
02Specifications13
| Brand | Heat Wagon |
|---|---|
| Model | VG1100 |
| Category | Indirect Fired |
| Input | 1,000,000 BTU/hr |
| Dual Fuel | Natural Gas / Propane |
| Fuel Consumption | 1000 CFH NG / 11 GPH Propane |
| Electrical | 240V, 25 amp |
| Fan | 11,200 CFM |
| Thermostat | On/Off with 50′ cord |
| Temp Rise | 110 degrees |
| Weight | 1,160 lbs. (approximate) |
| Ductable | up to 150′ using single, 30″ diameter duct up to 90′ using dual, 24″ diameter ducts |
| Dimensions | 104″ L 41″ W 73″ H |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Downloads2
04Shipping & Ordering
This item ships at approximately 1,180 lbs. It ships by freight, quoted to the delivery address; contact us for a lift-gate or residential delivery quote before you order.
Need ducting, a thermostat, a regulator or a fuel tank to go with it? See Heat Wagon OEM heater parts or call us and we’ll spec the complete setup with you.
