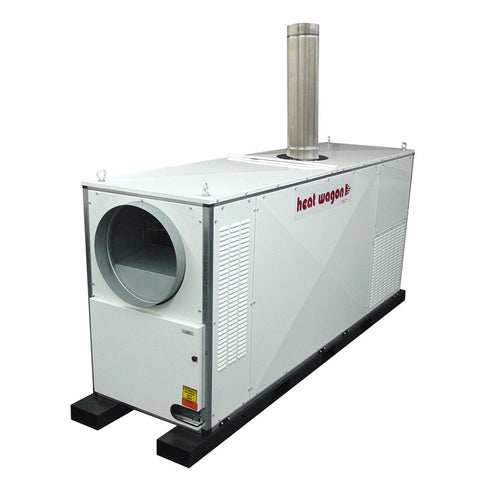

Heat Wagon | VG1000 Indirect Gas-Fired Heater 1,000,000 BTU/hr
The Heat Wagon VG1000 is rated at 1,000,000 BTU/hr on vapor propane or natural gas, moving 4,075 CFM. A sealed heat exchanger flues combustion outside, delivering clean, dry heat for enclosed and occupied spaces, drywall, painting and concrete curing.
- Output1MBTU/hr
- Airflow4,075CFM
- FuelDual Fuel
- Weight1,300lbs
01Features & Build
-
Features
- CSA approved
- 100% clean, dry heat
- Approved for indoor/outdoor applications
- Ductable to 200ft.
- Remote thermostat with 15′ cord
- Large capacity fuel tanks (optional)
- In-line fuel circulation heater ensures smooth start-up (Tested to -20°F)
02Specifications12
| Brand | Heat Wagon |
|---|---|
| Model | VG1000 |
| Category | Indirect Fired |
| Temperature Rise | 200 degrees |
| Input | 1,000,000 BTU/hr |
| Fuel | Vapor Propane / Natural Gas |
| Fuel Consumption | 7.2 GPH |
| Electrical | 240V, 30 Amp |
| Thermostat | On/Off w/ 15′ cord |
| Weight | 1,300 lbs. |
| Ductable | up to 200′ |
| Dimensions | 120″ L 31.5″ W 54″ H |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Downloads2
04Shipping & Ordering
This item ships at approximately 1,300 lbs. It ships by freight, quoted to the delivery address; contact us for a lift-gate or residential delivery quote before you order.
Need ducting, a thermostat, a regulator or a fuel tank to go with it? See Heat Wagon OEM heater parts or call us and we’ll spec the complete setup with you.
