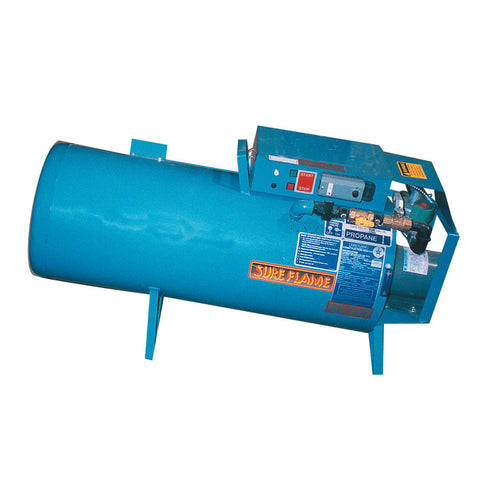

Heat Wagon Sure Flame | S405 Direct Fired Dual Fuel Heater 400,000 BTU/hr
The Heat Wagon Sure Flame S405 is rated at 400,000 BTU/hr on vapor propane or natural gas, moving 2,000 CFM. Direct fired heat puts nearly all of the fuel's energy into the space, the economical choice for ventilated job sites, tented work and open structures.
- Output400KBTU/hr
- Airflow2,000CFM
- FuelDual Fuel
- Weight95lbs
01Features & Build
-
Features
- CSA approved for unattended operation
- Light enough for one-man operation
- Dual fuel – quick changeover from propane to natural gas
- Air flow switch and Hi limit switch ensures safe operation
- Thermostat to conserve fuel
- Optional wheel kit available
- Thicker gauge steel construction ensures durability
02Specifications15
| Brand | Heat Wagon Sure Flame |
|---|---|
| Model | S405 |
| Category | Direct Fired |
| Input | 400,000 BTU/hr |
| Fuel | Vapor Propane / Natural Gas |
| Fuel Consumption | 4.4 GPH Propane / 400 CFH NG |
| Gas Connection | 1” FNPT |
| Inlet Pressure | 7″ min / 14″ max |
| Electrical | 120 Volts 12 amp circuit |
| Fan | 2,000 CFM 1/4 HP |
| Thermostat | On/Off |
| Temp Rise | 344 degrees |
| Weight | 95 lbs. |
| Dimensions | 46″ L / 18″ W / 24″ H |
| Regulator (recommended) | 40SV06 |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Downloads2
04Shipping & Ordering
This item ships at approximately 107 lbs.
Need ducting, a thermostat, a regulator or a fuel tank to go with it? See Heat Wagon OEM heater parts or call us and we’ll spec the complete setup with you.
