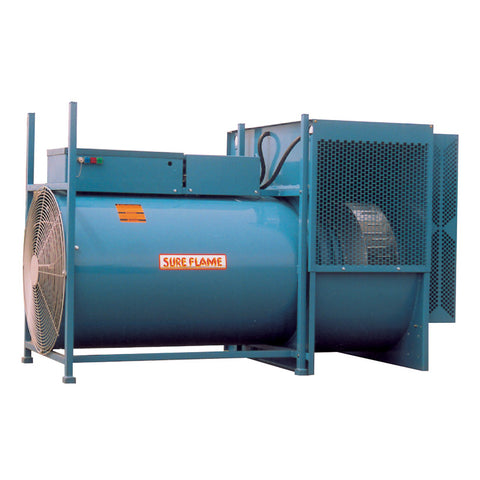

Heat Wagon Sure Flame | S2200D Make-Up Air Heater 2,250,000 BTU/hr
The Heat Wagon Sure Flame S2200D is rated at 2,250,000 BTU/hr on vapor propane or natural gas, moving 11,000 CFM. It tempers incoming ventilation air with a concealed flame, holding temperature in buildings that need constant fresh-air exchange.
- Output2.25MBTU/hr
- Airflow11,000CFM
- FuelDual Fuel
- Weight860lbs
01Features & Build
-
Features
- CSA approved
- Safe fuel shutdown if combustion air is interrupted
- Low housing temperature
- Simple inlet change from propane to natural gas
- Safe monitoring of combustion, two trial electronic ignition with 5 second pre-purge time delay and 10 second shutdown
- High limit switch protects heater by shutting down if unit is being overfired
- Protects heater by shutting down if voltage is too low
- Remote thermostat automatically cycles the heater hi/low to maintain room temperature
- Indoor/outdoor usage
02Specifications12
| Brand | Heat Wagon Sure Flame |
|---|---|
| Model | S2200D |
| Category | Make-Up Air |
| Input | 2,200,000 BTU/hr on High / 1,9500,000 BTU/hr on Low (propane) / 1,6500,000 BTU/hr on Low (NG) |
| Fuel | Vapor Propane / Natural Gas |
| Fuel Consumption | 24.5 GPH Propane / 2,250 CFH NG |
| Electrical | 240V single phase 30 AMP / 208-240V 3 phase 20 amp / 480V 3 phase 10 amp |
| Fan | 12,000 CFM |
| Gas Connection | 1 1/4” FNPT |
| Thermostat | HI-Lo or Modulating |
| Temp Rise | 350 degrees |
| Weight | 860 lbs. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Downloads2
04Shipping & Ordering
This item ships at approximately 860 lbs. It ships by freight, quoted to the delivery address; contact us for a lift-gate or residential delivery quote before you order.
Need ducting, a thermostat, a regulator or a fuel tank to go with it? See Heat Wagon OEM heater parts or call us and we’ll spec the complete setup with you.
