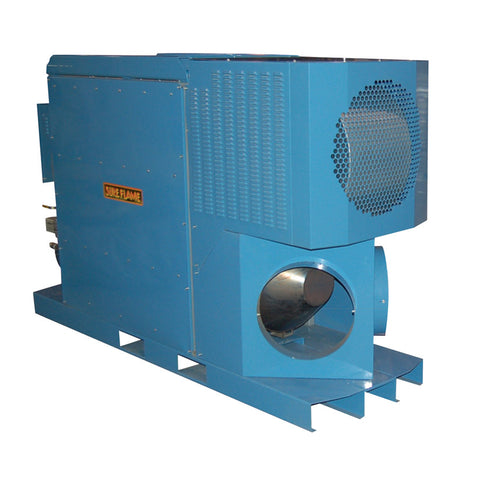

Heat Wagon Sure Flame | IX800 Indirect Gas-Fired Heater 800,000 BTU/hr
The Heat Wagon Sure Flame IX800 is rated at 800,000 BTU/hr on vapor propane or natural gas, moving 6,000 CFM. A sealed heat exchanger flues combustion outside, delivering clean, dry heat for enclosed and occupied spaces, drywall, painting and concrete curing.
- Output800KBTU/hr
- Airflow6,000CFM
- FuelDual Fuel
- Weight1,660lbs
01Features & Build
-
Features
- CSA approved
- Easy access to burner and electrical controls
- Simple Conversion
- Between Natural Gas and Propane
- Fork Lift and Pallet Jack Pockets
- Single Point Lifting Hook
- 3 Recirculation Options
- 2 x 16″ ducts
- Remote thermostat
- 86% efficiency
02Specifications14
| Brand | Heat Wagon Sure Flame |
|---|---|
| Model | IX800 |
| Category | Indirect Fired |
| Input | 800,000 BTU/hr |
| Fuel | Vapor Propane / Natural Gas |
| Fuel Consumption | 8.7 GPH / 800 CFH NG |
| Gas Connection | 1″ NPT |
| Supply Pressure | 1/2 – 5 psi |
| Heat Rise | 130 degrees |
| Electrical | 208/230V / Single or 3 phase / Max Amps 39.1 @ 230V single phase / 25.1 @ 230V 3 phase |
| Thermostat | On/Off |
| Weight | 1,660 lbs. |
| Ductable | up to 100′ |
| Dimensions | 95″ L 29″ W 58″ H |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Downloads2
04Shipping & Ordering
This item ships at approximately 1,660 lbs. It ships by freight, quoted to the delivery address; contact us for a lift-gate or residential delivery quote before you order.
Need ducting, a thermostat, a regulator or a fuel tank to go with it? See Heat Wagon OEM heater parts or call us and we’ll spec the complete setup with you.
