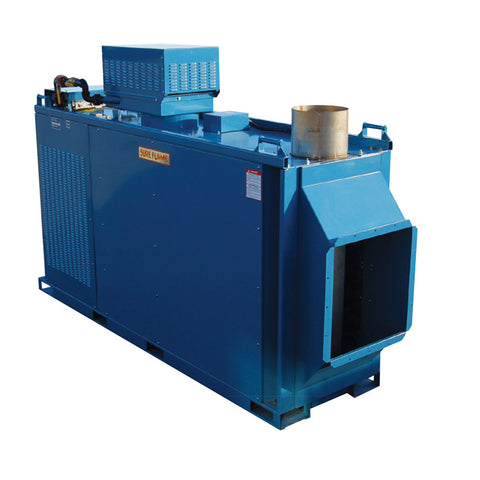

Heat Wagon Sure Flame | IX1500 Indirect Gas-Fired Heater 1,500,000 BTU/hr
The Heat Wagon Sure Flame IX1500 is rated at 1,500,000 BTU/hr on vapor propane or natural gas, moving 8,300 CFM. A sealed heat exchanger flues combustion outside, delivering clean, dry heat for enclosed and occupied spaces, drywall, painting and concrete curing.
- Output1.5MBTU/hr
- Airflow8,300CFM
- FuelDual Fuel
- Weight1,875lbs
01Features & Build
-
Features
- CSA approved
- Quick Change fuel supply – Dual fuel selector valve
- Compact Design – uses less space on the job site and during the off season
- 3 safety shut down controls (High limit switch, Air switch, and Flame Rod)
- Forklift Accessible side and ends
- Multiple power configurations options
- 2- stage remote thermostat control
- Stainless steel patented heat exchanger
- Stainless steel Burner
- 90% efficiency
02Specifications15
| Brand | Heat Wagon Sure Flame |
|---|---|
| Model | IX1500 |
| Category | Indirect Fired |
| Input | 1,500,000 BTU/hr |
| Fuel | Vapor Propane / Natural Gas |
| Fuel Consumption | 16.4 GPH LP / 1,500 CFH NG |
| Gas Connection | 1 1/2″ NPT |
| Gas Pressure | 1/2 – 5 psi |
| Fan | 22,000 CFM |
| Temperature Rise | 171 degrees |
| Electrical | 240/480V, 30 Amp, 3 phase |
| Thermostat | On/Off |
| Weight | 1,875 lbs. |
| Ductable | up to 400′ |
| Dimensions | 114″ L 32.5″ W 77.5″ H |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Downloads2
04Shipping & Ordering
This model is built to order. Call 504-228-4049 for availability and lead time before you plan a job around it.
This item ships at approximately 1,875 lbs. It ships by freight, quoted to the delivery address; contact us for a lift-gate or residential delivery quote before you order.
Need ducting, a thermostat, a regulator or a fuel tank to go with it? See Heat Wagon OEM heater parts or call us and we’ll spec the complete setup with you.
