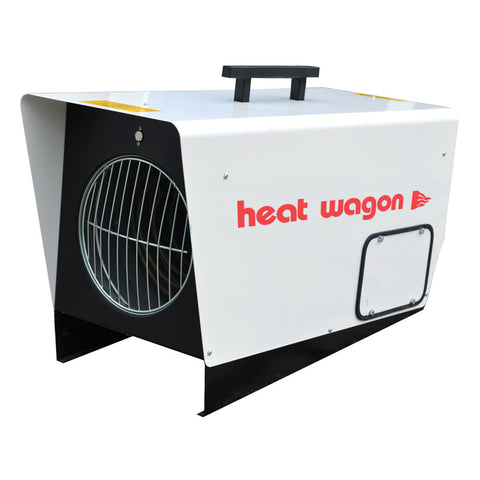

Heat Wagon | P1800-3 Electric Heater 65,000 BTU/hr, 18 Kw, 3 Phase
The Heat Wagon P1800-3 electric heater delivers 65,000 BTU/hr (18 kW) and 590 CFM on 3Ø 240V 50A. Electric heat adds no combustion by-products or moisture, so it suits finished interiors, occupied spaces and dry-out work.
- Output18kW
- Heat65KBTU/hr
- Airflow590CFM
- Power240V
01Features & Build
-
Features
- UL approved
- Built-in thermostat with Low/High switch
- Direct wiring of power supply to terminal block
- Forced-air blower
- Overheat protection
- Rugged steel housing
-
Benefits
- Cycles heater on/off automatically
- No need for expensive receptacles
- Circulates room air for efficient use of heated air
- Unit will safely shut down if blower is restricted
- Durability
02Specifications11
| Brand | Heat Wagon |
|---|---|
| Model | P1800-3 |
| Category | Electric Heater |
| Input | 41,200/65,000 BTU/Hr |
| Kilowatts | 12/18 KWh |
| Electrical | 240 Volts / 34/50 Amps / Three Phase |
| Fan | 590 CFM |
| Thermostat | Low/High |
| Temperature Rise | 100 degrees |
| Weight | 62 lbs. |
| Dimensions | 30″ L 14″ W 20″ H |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Downloads2
04Shipping & Ordering
This item ships at approximately 63 lbs.
Need ducting, a thermostat, a regulator or a fuel tank to go with it? See Heat Wagon OEM heater parts or call us and we’ll spec the complete setup with you.
