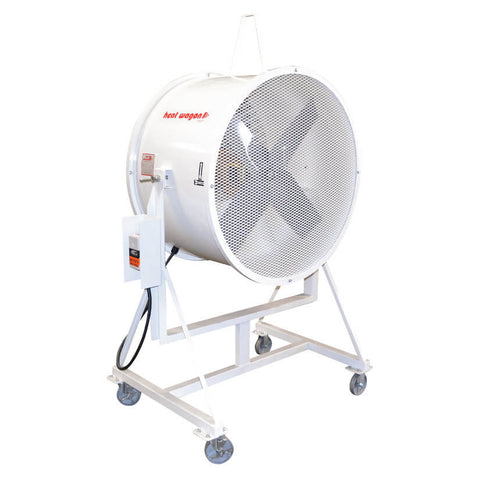

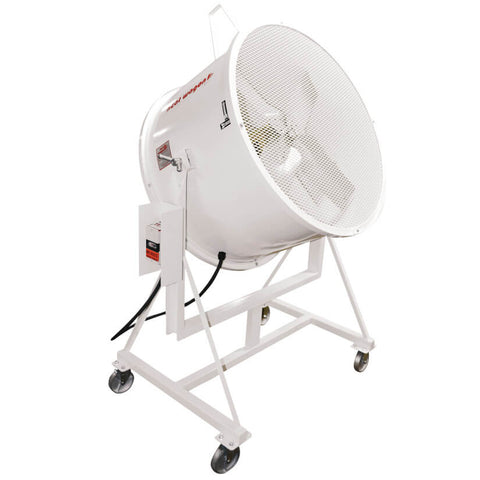

Heat Wagon | I-36 36 in. Mancooler Fan 25,500 CFM
The Heat Wagon I-36 moves 25,500 CFM on 3Ø 480V, for ventilation, drying and cooling on the job site and in the plant.
- Airflow25,500CFM
- Diameter36in
- Power480V
- Weight390lbs
01Features & Build
-
Features
- Industrial strength construction for severe factory environments
- Powder coated heavy gauge, all-welded steel fabrication for high impact resistance and minimum maintenance
- Lifting hook for easy relocation

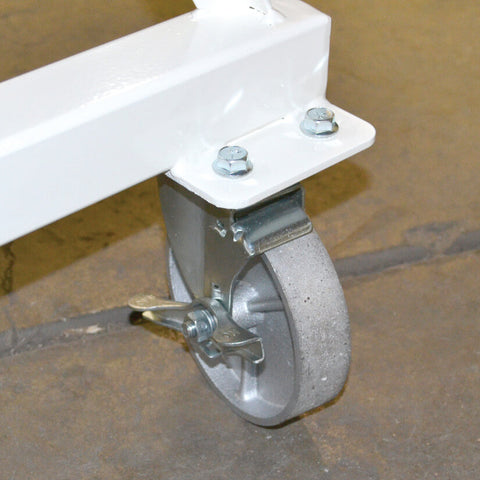

- Heavy-duty steel casters (2 locking) provide mobility
- Overload protection
- Motor starter shielded from incidental damage
- Air delivery can be adjusted through 5-pin lock positions
- Reliable ABB (Baldor) 5HP motor with heavy-duty steel axial impeller
-
Applications
- Process cooling for the hot industrial environments of steel mills
- Local hot spot cooling for foundries and smelters
- Fume removal
- Comfort cooling for workers in factories or warehouses
- High volume ventilations
02Specifications10
| Brand | Heat Wagon |
|---|---|
| Model | I-36 |
| Category | Fans & Blowers |
| Rating | 25,500 CFM of free air |
| Type | 36″ diameter 4 blade direct drive |
| Electrical | 208-230/460 Volt 15/7 Amps |
| Motor | 5HP @ 1,725 RPM | 3PH |
| Tiltable | Yes |
| Weight | 390 lbs. |
| Dimensions | 34″ D 50″ W 77″ H |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Downloads2
04Shipping & Ordering
This item ships at approximately 390 lbs. It ships by freight, quoted to the delivery address; contact us for a lift-gate or residential delivery quote before you order.
Need a volume price or help matching this product to your application? Call us and we’ll spec it with you.
