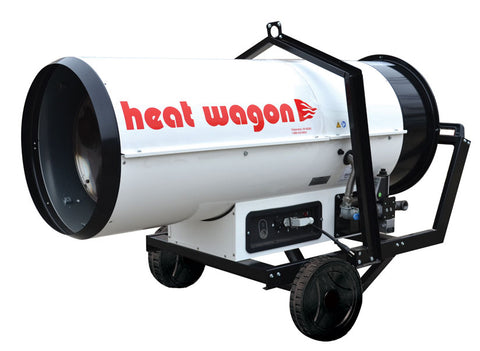

Heat Wagon | DG400 Direct Fired Dual Fuel Heater 400,000 BTU/hr
The Heat Wagon DG400 is rated at 400,000 BTU/hr on vapor propane or natural gas, moving 4,120 CFM. Direct fired heat puts nearly all of the fuel's energy into the space, the economical choice for ventilated job sites, tented work and open structures.
- Output400KBTU/hr
- Airflow4,120CFM
- FuelDual Fuel
- Weight233lbs
01Features & Build
-
Features
- CSA approved
- Can be used as a make-up air unit
- Heavy-duty frame with wheels and lifting hook
- Changes from vapor propane to natural gas with a turn of a valve
- Low amp draw (5.0/8.5)
- Ductable up to 25’ (straight, no more than 1 90 degree bend)
- High CFM axial fan
- Optional remote thermostat with 50’ of cord
- Capable of continuous ventilation with thermostat control of heat
02Specifications13
| Brand | Heat Wagon |
|---|---|
| Model | DG400 |
| Category | Direct Fired |
| Input | 394,000 / 404,000 |
| Fuel | Vapor Propane / Natural Gas |
| Fuel Consumption | 4.3 GPH / 404 CFH NG |
| Electrical | 120V, 8 amp |
| Fan | 4,120 CFM |
| Thermostat | On/Off (optional) |
| Temp Rise | 180 degrees |
| Weight | 233 lbs. |
| Ductable | up to 50' |
| Dimensions | 61" L 34" W 39" H |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Downloads2
04Shipping & Ordering
This item ships at approximately 233 lbs. It ships by freight, quoted to the delivery address; contact us for a lift-gate or residential delivery quote before you order.
Need ducting, a thermostat, a regulator or a fuel tank to go with it? See Heat Wagon OEM heater parts or call us and we’ll spec the complete setup with you.
