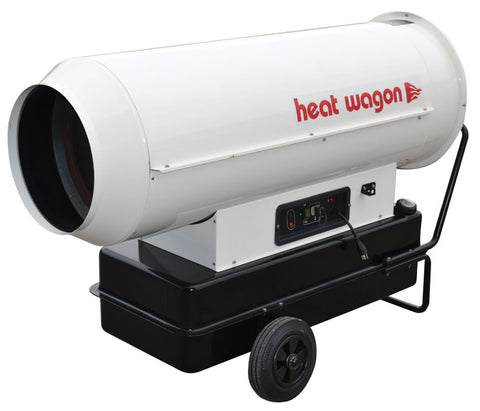

Heat Wagon | DF600 Direct Fired Oil Heater 600,000 BTU/hr
The Heat Wagon DF600 is rated at 600,000 BTU/hr on diesel, kerosene or #1-2 fuel oil, moving 2,800 CFM. Direct fired heat puts nearly all of the fuel's energy into the space, the economical choice for ventilated job sites, tented work and open structures.
- Output600KBTU/hr
- Airflow2,800CFM
- FuelOil
- Weight139lbs
01Features & Build
-
Features
- CSA approved
- Runs on #1, #2 diesel, kerosene, JP-8, or Jet A fuel
- Simple easy to use control panel built with tough flameproof plastic
- Safety features include: overheat limit, pressure switch and flame out sensor
- Double layered combustion chamber provides quiet operation and low surface shell temperature
- Preheated fuel filter with fuel gauge is standard equipment
- Optional thermostat available with 50’ cord
- Optional fuel kit provides intended run times
- 35.6 gallon tank capacity (8.3 hour run time)
02Specifications11
| Brand | Heat Wagon |
|---|---|
| Model | DF600 |
| Category | Direct Fired |
| Input | 600,000 BTU/Hr |
| Fuel | #1, #2 Fuel Oil |
| Fuel Consumption | 4.3 GPH |
| Electrical | 120 Volts, 11.3 Amps |
| Fan | 2,800 CFM |
| Thermostat | On/Off (optional) |
| Weight | 139 lbs. |
| Dimensions | 73″ L 27″ W 43″ H |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Downloads2
04Shipping & Ordering
This item ships at approximately 247 lbs. It ships by freight, quoted to the delivery address; contact us for a lift-gate or residential delivery quote before you order.
Need ducting, a thermostat, a regulator or a fuel tank to go with it? See Heat Wagon OEM heater parts or call us and we’ll spec the complete setup with you.
