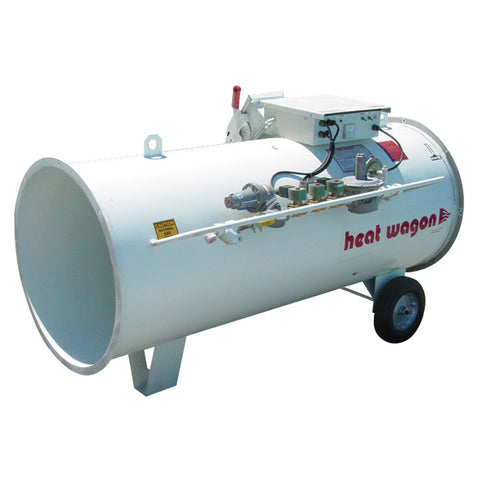

Heat Wagon | 2730C Direct Fired Heater 2,000,000 BTU/hr
The Heat Wagon 2730C is rated at 2,000,000 BTU/hr on propane, natural gas or lp, moving 12,500 CFM. Direct fired heat puts nearly all of the fuel's energy into the space, the economical choice for ventilated job sites, tented work and open structures.
- Output2MBTU/hr
- Airflow12,500CFM
- FuelGas
- Weight440lbs
01Features & Build
-
Features
- CSA approved
- Can be utilized as a make-up air unit
- Safe fuel shutdown if combustion air is interrupted
- Low housing temperature
- May be ducted up to 200 feet
- Safe monitoring of combustion, two trial electronic ignition with 20 second pre-purge time delay and 7 second shutdown
- Fused disconnect switch permits easy, safe 100% power shut off
- Protects heater by shutting down if unit is being overfired (high limit)
- Protects heater by shutting down if voltage is too low (motor overload)
- Easy monitoring of control voltage to ensure trouble-free operation
- Automatically cycles the heater high/low
02Specifications14
| Brand | Heat Wagon |
|---|---|
| Model | 2730C |
| Category | Direct Fired |
| Input | 2,000,000 BTU – low fire |
| Fuel | Vapor Propane / Liquid Propane / Natural Gas |
| Fuel Consumption | 21.9 GPH LP / 2000 CFH NG |
| Gas Connection | 3/4” FNPT |
| Electrical | 208V 1Ø 19 Amp / 208-240V 3Ø 15 Amp / 480V 3Ø 7 Amp |
| Fan | 12,500 CFM 3.0 HP |
| Thermostat | High – Low |
| Duct (optional) | WD3025HT |
| Temp Rise | 257 degrees |
| Weight | 440 lbs. |
| Dimensions | 72″ L 32″ W 46″ H |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Downloads3
04Shipping & Ordering
This item ships at approximately 395 lbs. It ships by freight, quoted to the delivery address; contact us for a lift-gate or residential delivery quote before you order.
Need ducting, a thermostat, a regulator or a fuel tank to go with it? See Heat Wagon OEM heater parts or call us and we’ll spec the complete setup with you.
