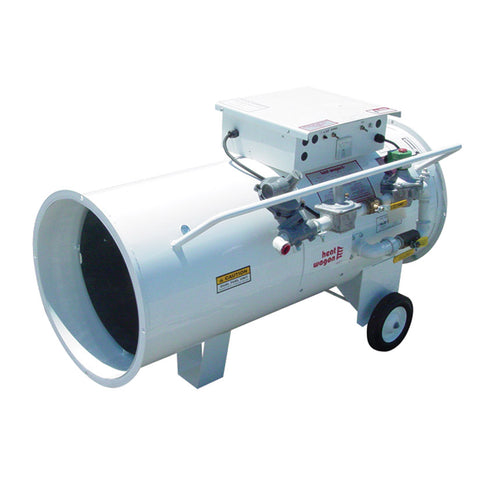

Heat Wagon | 1800BL Direct Fired Liquid Propane Heater 750,000 BTU/hr
The Heat Wagon 1800BL liquid propane model is rated at 750,000 BTU/hr on liquid propane, moving 4,200 CFM. Direct fired heat puts nearly all of the fuel's energy into the space, the economical choice for ventilated job sites, tented work and open structures.
- Output750KBTU/hr
- Airflow4,200CFM
- FuelLP
- Weight200lbs
01Features & Build
-
Features
- Dual fuel – changes from vapor propane to natural gas with the turn of a valve
- CSA approved
- Can be utilized as a make-up air unit
- Efficient motor reduces amp draw and is rated to run on standard 15 amp circuit
- Remote (50’ long) thermostat with Hi/Lo/Off control
- 12” wheels make for easy handling
- Relays pull in and hold tight down to 95V
- Ductable up to 50 ft.
- Upgraded heater control board starts heater with low voltage down to 95V
- potted control board minimizes moisture and vibration
02Specifications13
| Brand | Heat Wagon |
|---|---|
| Model | 1800BL |
| Category | Direct Fired |
| Input | 750,000 – 450,000BTU/Hr |
| Fuel | Liquid propane |
| Fuel Consumption | 8.3 GPH Propane / 750 CFH NG |
| Gas Connection | 3/4” FNPT |
| Electrical | 120 Volts, 15 Amp circuit |
| Fan | 4,200 CFM |
| Thermostat | 2 Stage Hi/Lo/Off w/50’Remote |
| Temp Rise | 385 degrees |
| Weight | 200 lbs. |
| Dimensions | 31.5″H x 48.5″L x 26″W |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Downloads3
04Shipping & Ordering
This item ships at approximately 200 lbs. It ships by freight, quoted to the delivery address; contact us for a lift-gate or residential delivery quote before you order.
Need ducting, a thermostat, a regulator or a fuel tank to go with it? See Heat Wagon OEM heater parts or call us and we’ll spec the complete setup with you.
