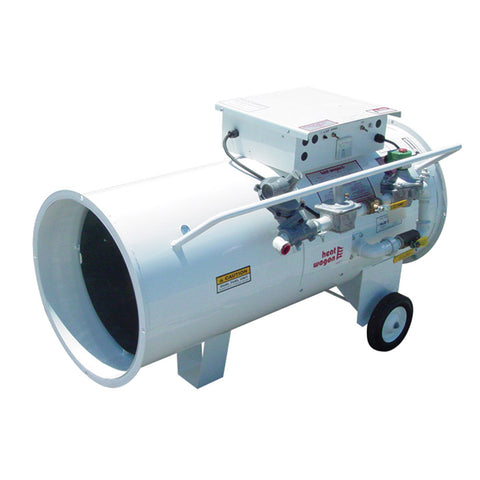

Heat Wagon | 1800B Direct Fired Dual Fuel Heater 750,000 BTU/hr
The Heat Wagon 1800B is rated at 750,000 BTU/hr on vapor propane or natural gas, moving 4,200 CFM. Direct fired heat puts nearly all of the fuel's energy into the space, the economical choice for ventilated job sites, tented work and open structures.
- Output750KBTU/hr
- Airflow4,200CFM
- FuelDual Fuel
- Weight200lbs
01Features & Build
-
Features
- Dual fuel – changes from vapor propane to natural gas with the turn of a valve
- CSA approved
- Can be utilized as a make-up air unit
- Efficient motor reduces amp draw and is rated to run on standard 15 amp circuit
- Remote (50’ long) thermostat with Hi/Lo/Off control
- 12” wheels make for easy handling
- Relays pull in and hold tight down to 95V
- Ductable up to 50 ft.
- Upgraded heater control board starts heater with low voltage down to 95V
- potted control board minimizes moisture and vibration
02Specifications13
| Brand | Heat Wagon |
|---|---|
| Model | 1800B |
| Category | Direct Fired |
| Input | 750,000 – 450,000BTU/Hr |
| Fuel | Vapor Propane / Natural Gas |
| Fuel Consumption | 8.3 GPH Propane / 750 CFH NG |
| Gas Connection | 3/4” FNPT |
| Electrical | 120 Volts, 15 Amp circuit |
| Fan | 4,200 CFM |
| Thermostat | 2 Stage Hi/Lo/Off w/50’Remote |
| Temp Rise | 385 degrees |
| Weight | 200 lbs. |
| Dimensions | 31.5″H x 48.5″L x 26″W |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Downloads3
04Shipping & Ordering
This item ships at approximately 200 lbs. It ships by freight, quoted to the delivery address; contact us for a lift-gate or residential delivery quote before you order.
Need ducting, a thermostat, a regulator or a fuel tank to go with it? See Heat Wagon OEM heater parts or call us and we’ll spec the complete setup with you.
