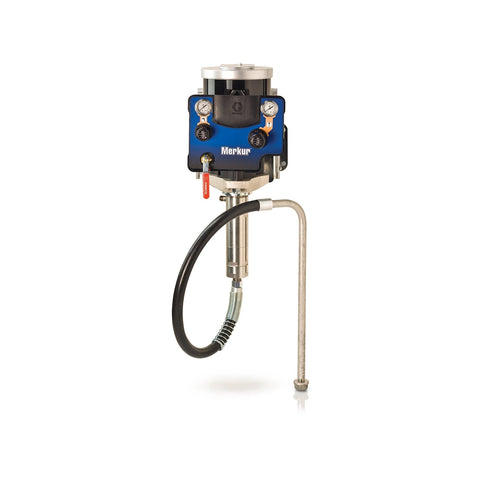

Graco | G30W09 30:1 Merkur Pump, 0.4 gpm (1.5 lpm) fluid flow, Wall Mount, Pump/Gun Air Controls
Graco
Model: G30W09
This product is designed to enhance productivity, reduce operational costs, lower emissions, and deliver consistent, high-quality finishes for demanding applications.
- Demonstrated to offer superior performance and longevity compared to other pumps in its category.
- Features the most advanced air motor available on the market.
- Achieves increased efficiency through low air consumption.
- External access to the valve facilitates straightforward servicing and on-site replacement, thereby minimizing downtime.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955376328 |
| Division | IPD |
| Height | 24 IN | 60.960 CM |
| Length | 33.6 IN | 85.344 CM |
| Width | 16.8 IN | 42.672 CM |
| Volume | 7.84 FT3 | 0.222 M3 |
| Shipping Weight | 58 LBS | 26.308 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Convertible | Non-Convertible |
| Fluid Inlet Size (in) | 1/2 |
| Fluid Inlet Size (mm) | 12.7 |
| Fluid Outlet Size (mm) | 9.525 |
| Hose Inlet Diameter (cm) | 0.5 |
| Hose Inlet Diameter (in) | 3/16 |
| Hose Inlet Diameter (mm) | 5 |
| Includes | Pump and Gun Air Controls |
| Maximum Flow Rate (L/min) | 1.5 |
| Maximum Hose Length (ft) | 25 |
| Maximum Hose Length (m) | 7.5 |
| Maximum Working Pressure (psi) | 3000 |
| Maximum Working Pressure (kPa) | 20700 |
| Maximum Working Pressure (MPa) | 20.7 |
| Model | Merkur |
| Maximum Working Pressure (bar) | 207 |
| Weight (kg) | 15 |
| Number of Guns | 0 |
| Mount Type | Wall Mount |
| Gun Technology | Bare Package |
| Gun Model | No Applicator |
| Product Type | Bare Package |
