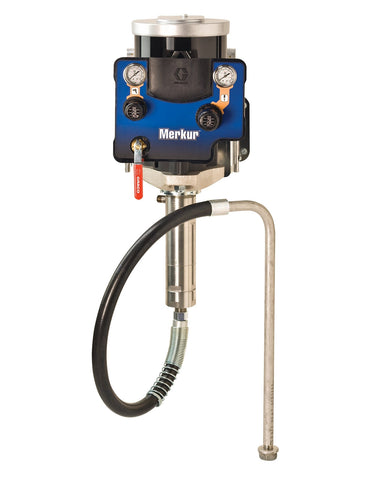

Graco | G03W15 3:1 Merkur Air Spray Package, 125cc, Wall, No Applicator
Graco
Model: G03W15
Select Merkur Low Pressure Packages for your finishing applications. This package includes a Merkur low-pressure piston pump featuring advanced air spray technology.
- The wall mount configuration provides convenient access to data monitoring and controls.
- The air motor is designed for efficient operation with low air consumption.
- The pump lower is engineered for smooth, low-pulsation operation.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 755652956686 |
| Division | IPD |
| Height | 21.25 IN | 53.975 CM |
| Length | 33.5 IN | 85.090 CM |
| Width | 17.25 IN | 43.815 CM |
| Volume | 7.106 FT3 | 0.201 M3 |
| Shipping Weight | 56.8 LBS | 25.764 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (cm) | 2.54 |
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Size (mm) | 25.4 |
| Fluid Outlet Size (cm) | 1.27 |
| Fluid Outlet Size (mm) | 12.7 |
| Maximum Flow Rate (L/min) | 7.5 |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Operating Temperature (°F) | 120 |
| Maximum Working Pressure (psi) | 120 |
| Mount Type | Wall Mount |
| Maximum Air Pressure (bar) | 6.9 |
| Maximum Air Pressure (kPa) | 690 |
| Maximum Air Pressure (psi) | 100 |
| Model | Merkur |
| Product Type | Bare Package |
| Technology Type | Air Spray |
| Gun Model | No Applicator |
| Gun Technology | Bare Package |
| Maximum Working Pressure (MPa) | 0.8 |
