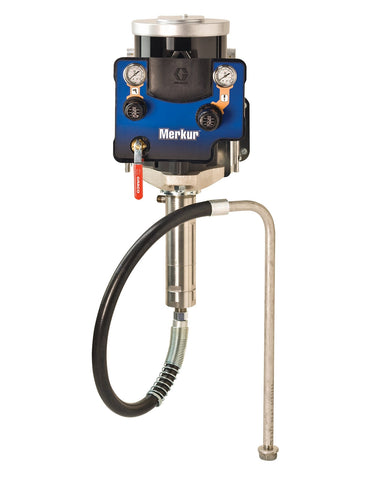

Graco | G03W01 3:1 Merkur Air Spray Package, 125cc, Wall, Pump/Gun Air Controls, Siphon Kit, No Applicator
Graco
Model: G03W01
The Merkur Low Pressure Package is designed for finishing applications and features an advanced air spray technology piston pump.
- The pump's lower section ensures smooth operation with minimal pulsation.
- The air motor provides efficient performance with low air consumption.
- The wall mount configuration allows for convenient access to data monitoring and controls.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 755652956839 |
| Division | IPD |
| Height | 21.375 IN | 54.293 CM |
| Length | 33.5 IN | 85.090 CM |
| Width | 17.5 IN | 44.450 CM |
| Volume | 7.252 FT3 | 0.205 M3 |
| Shipping Weight | 66.8 LBS | 30.300 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (cm) | 2.54 |
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Size (mm) | 25.4 |
| Fluid Outlet Size (cm) | 1.27 |
| Fluid Outlet Size (mm) | 12.7 |
| Includes | Pump and Gun Air Controls, Siphon Kit |
| Maximum Flow Rate (L/min) | 7.5 |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Operating Temperature (°F) | 120 |
| Maximum Working Pressure (psi) | 120 |
| Mount Type | Wall Mount |
| Maximum Air Pressure (bar) | 6.9 |
| Maximum Air Pressure (kPa) | 690 |
| Maximum Air Pressure (psi) | 100 |
| Model | Merkur |
| Product Type | Bare Package |
| Technology Type | Air Spray |
| Gun Model | No Applicator |
| Gun Technology | Bare Package |
| Maximum Working Pressure (MPa) | 0.8 |
