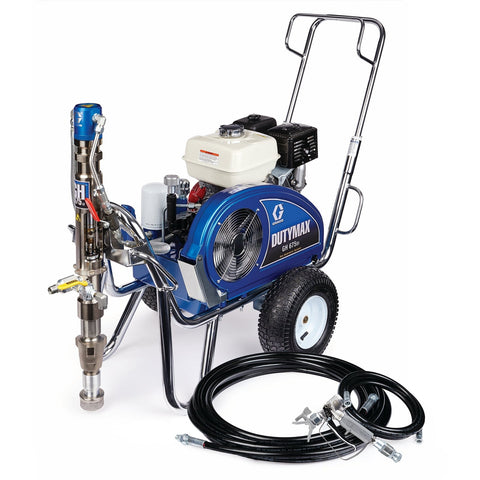

Graco | 25D226 DutyMax GH 675DI Gas Hydraulic Airless Sprayer, Big 150 & Hopper

Graco

Model: 25D226

The DutyMax GH 675DI is designed for professional contractors requiring high production output when applying difficult-to-atomize materials such as silicone and other waterproofing or protective coatings. Its compact design ensures portability for any job site.

This sprayer handles demanding coatings with a maximum pressure of 6750 psi (465 bar) and flow rates up to 1.5 gpm (5.7 lpm). It significantly speeds up application compared to manual methods and is ideal for detail work on large projects. Cleanup is efficient, using less solvent than larger systems. An optional kit allows conversion to a 3300 psi (227 bar) / 3 gpm (11.3 lpm) pump for spraying both silicone and acrylics, effectively providing two sprayers in one. The removable engine enhances transport versatility.

• 6750 PSI Direct Immersion Pump
  • Features a submerged foot valve.
  • Stainless steel rod and hard chrome cylinder ensure exceptional durability and longevity.
  • Facilitates easy loading and pumping of high-viscosity fluids.
  • Filter-less design with an oversized material outlet optimizes flow up to 1.5 gpm.
• Heavy-Duty Hydraulic System
  • Provides faster, more responsive changeovers.
  • O-ring sealed to prevent leaks.
  • Offers high-precision pressure control.
  • Does not require a hydraulic reset button.
  • Durable hydraulic lines ensure extended service life.
• Heavy-Duty Cooling System
  • Includes a large 4-gallon hydraulic reservoir.
  • Return line hydraulic filter extends system life.
  • Does not require special hydraulic fluid.
  • Features a proven cooler and blower system.
  • Equipped with an easy-to-use drain plug.
• Rugged, Heavy-Duty Steel Frame
  • Equipped with easy-roll tubed pneumatic tires.
  • Enamel-painted steel tubing provides corrosion protection.
  • Multi-function design converts to a skid mount in seconds.
• Honda Engine
  • 270 cc (9 HP) engine with an integrated fuel tank delivers maximum performance.
  • Contractor-preferred engine includes Oil Alert.
• High-Pressure Gun/Hose
  • Includes the durable XTR-7 HF 7250 psi spray gun.
  • Features an easy-pull trigger to reduce fatigue.
  • Comes with a high-pressure Xtreme Duty hose.
• Ready-To-Spray Big 150 System
  • Configured with 150 feet of high-pressure hose.
  • Includes a 20-inch tip extension.
  • Features a 180° swivel.
  • Comes with XHD 523, 527, 531 Tips and Guard.
  • Includes a 1/2 inch x 150 ft Xtreme-Duty Airless Hose.
  • Includes a 3/8 inch x 10 ft Xtreme-Duty Airless Whip Hose.
  • All necessary fittings are included.
  • Features a 25-gallon material hopper with couplings.

Operational Specifications

Technical Specifications
