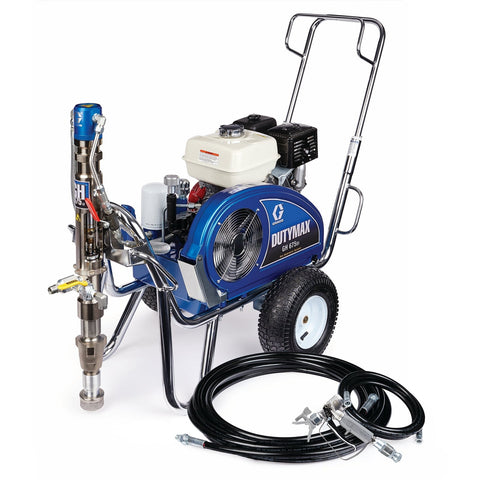

Graco | 25D223 DutyMax GH 675DI Gas Hydraulic Airless Sprayer, Complete
Graco
Model: 25D223
The DutyMax GH 675DI is designed for professional contractors applying difficult-to-atomize materials like silicone and other waterproofing or protective coatings. Its compact design ensures portability for job sites.
This sprayer operates at a maximum pressure of 6750 psi (465 bar) with flow rates up to 1.5 gpm (5.7 lpm), significantly increasing efficiency over manual application methods. It is ideal for detail work on large projects. Cleanup requires less solvent than larger systems. An optional kit allows conversion to a 3300 psi (227 bar) / 3 gpm (11.3 lpm) pump for spraying both silicone and acrylics, effectively providing two sprayers in one. The removable engine enhances transport versatility.
-
6750 PSI Direct Immersion Pump
- Features a submerged foot valve.
- The stainless steel rod and hard chrome cylinder ensure exceptional durability and longevity.
- Easily pumps high-viscosity fluids.
- The filter-less design and extra-large material outlet optimize flow up to 1.5 gpm.
-
Heavy-Duty Hydraulic System
- Provides faster, more responsive changeover.
- O-ring sealed to prevent leaks.
- Offers high-precision pressure control.
- Does not require a hydraulic reset button.
- Durable hydraulic lines ensure a long service life.
-
Heavy-Duty Cooling System
- Includes a large 4-gallon hydraulic reservoir.
- A return line hydraulic filter extends system life.
- No special hydraulic fluid is required.
- Features a proven cooler and blower system.
- Equipped with an easy-to-use drain plug.
-
Rugged, Heavy-Duty Steel Frame
- Equipped with easy-roll tubed pneumatic tires.
- Enamel-painted steel tubing provides corrosion protection.
- The multi-function design can be converted to a skid mount in seconds.
-
Honda Engine
- A 270 cc (9 HP) engine with an integrated fuel tank delivers maximum performance.
- This contractor-preferred engine includes Oil Alert technology.
-
High-Pressure Gun/Hose
- Includes the durable XTR-7 HF 7250 psi spray gun.
- Features an easy-pull trigger designed to reduce fatigue.
- Comes with a high-pressure Xtreme Duty hose.
-
Ready to Spray Components
- Includes a 20-inch (50.8 cm) tip extension.
- Features a 180-degree swivel.
- Comes with XHD 523, 527, and 531 Tips and Guard.
- Includes a 1/2 in x 50 ft Xtreme-Duty Airless Hose.
- Includes a 3/8 in x 10 ft Xtreme-Duty Airless Whip Hose.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 755652695394 |
| Division | CED |
Technical Specifications
| Specification | Value |
|---|---|
| Compatible Replacement Pump | 17U996 |
| Convertible | Yes |
| Engine Size (HP) | 9 |
| Engine Size (kW) | 6.7 |
| Fluid Inlet Size (in) | 1 1/4-11 1/2 |
| Includes | XTR-7 HF Gun with Swivel, XHD RAC 523 Spray Tip, XHD RAC 527 Spray Tip, XHD RAC 531 Spray Tip, XHD RAC Guard, 1/2 in x 50 ft (15.2 m) Xtreme-Duty Airless Hose, 3/8 in x 10 ft (3 m) Xtreme-Duty Airless Whip Hose, TSL 4 oz (118 mL) |
| Maximum Flow Rate (L/min) | 5.7 |
| Maximum Sound Pressure Level (dB(A)) | 96 |
| Maximum Working Pressure (psi) | 6750 |
| Maximum Working Pressure (kPa) | 4650 |
| Power Rating (HP) | 9 |
| Power Rating (kW) | 6.7 |
| Overall Width (mm) | 673.1000 |
| Model | DutyMax |
| Maximum Working Pressure (bar) | 465 |
| Overall Height (cm) | 90 |
| Overall Height (in) | 35.5 |
| Weight (kg) | 99 |
| Overall Height (mm) | 901.7000 |
| Overall Length (cm) | 121 |
| Overall Width (in) | 26.5 |
| Overall Length (in) | 47.7 |
| Series | GH 675DI |
| Overall Length (mm) | 1211.58 |
| Overall Width (cm) | 67 |
