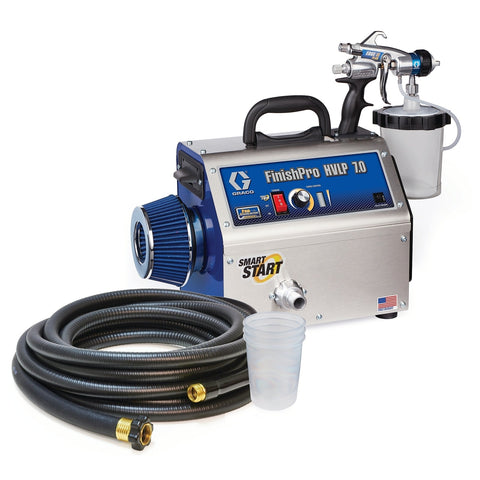

Graco | 17N265 FinishPro HVLP 7.0 ProContractor Series Sprayer
Graco
Model: 17N265
The FinishPro HVLP 7.0 ProContractor Series sprayer is equipped with features for on-demand power control and simplified operation. Independent controls for material, air, and spray fan enhance productivity on small, fine finish projects.
This sprayer is designed for efficient work and completing more jobs. The Graco HVLP ProContractor Series includes all Standard Series features, plus additional enhancements for extended life, increased convenience, and greater control, all contributing to improved profitability and a superior spray finish.
-
TurboForce Technology
- Proprietary turbine design increases pressure through each stage, delivering more performance at the gun.
- Higher air flow and pressure allow for increased production with less material thinning.
- Generates less heat and extends turbine life.
-
SmartStart Turbine
- Automatically shuts off when not in use, conserving energy and reducing wear.
- Minimizes jobsite noise, leading to less operator fatigue.
- Automatic shut-off reduces heat buildup and prolongs turbine lifespan.
-
TurboControl System with LED Display
- Adjustable TurboForce turbine speed to match required performance levels.
- Reduces heat buildup.
- Operates more quietly.
- Extends the overall life of the turbine system.
- Features 50% longer hoses compared to standard models.
-
Industry Leading Dual Filtration System
- Automotive-grade filter provides high-performance filtration.
- Offers superior filtration compared to foam and traditional paper filters found on most HVLP systems.
-
EDGE II Plus Gun
- Provides ultimate control with independent user adjustments for material volume, air flow, and spray fan size.
- Delivers 4X greater productivity.
- Includes the FlexLiner Bag System.
-
FlexLiner Bag System
- Replaces traditional material cups with a flexible paint bag system.
- Allows spraying at any angle, including upside down, without requiring adjustments.
-
Super-Flex Air Hose
- 15% lighter than comparable leading brands, offering improved control at the gun.
- Includes a 30 ft length hose.
- Connects without the need for tools.
-
Stainless Steel “Tough Box” Design
- Rugged, all-steel enclosure protects the turbine during use and transport.
- Smaller and lighter than previous models.
-
Utility Toolbox
- Provides separate storage for additional needles and nozzles.
-
On-Board Gun and Cup Holder
- Secures the gun when not in use.
- Facilitates easier paint refills with reduced spillage.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 755652390572 |
| Division | CED |
| Height | 20 IN | 50.800 CM |
| Length | 19 IN | 48.260 CM |
| Width | 15 IN | 38.100 CM |
| Volume | 3.299 FT3 | 0.093 M3 |
| Shipping Weight | 42 LBS | 19.051 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Includes | EDGE II Plus Gun, 32 oz FlexLiner System, #3 Quick-Release Fluid Set, 30 ft Super-Flex Air Hose, Automotive Main Filter |
| Maximum Air Inlet Pressure (bar) | 0 |
| Maximum Air Inlet Pressure (kPa) | 0 |
| Maximum Air Inlet Pressure (psi) | 7 |
| Maximum Hose Length (ft) | 60 |
| Maximum Hose Length (m) | 18 |
| Maximum Working Pressure (bar) | 0.7 |
| Maximum Working Pressure (kPa) | 70 |
| Maximum Working Pressure (psi) | 10 |
| Series | 7 |
| Sprayer Type | HVLP |
| Weight (kg) | 10.4 |
| Model | FinishPro |
| Product Type | Spray Package |
| Technology Type | HVLP |
| Recommended Annual Usage | Up to 50 gallons per year |
| Product Series | ProContractor |
