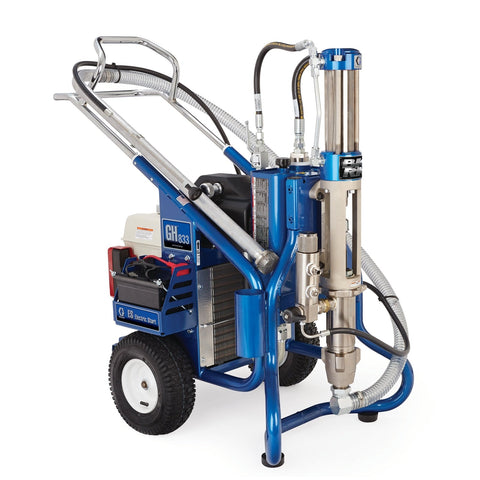

Graco | 16U781 GH 833ES Big Rig Gas Hydraulic Sprayer, Big 250 System
Graco
Model: 16U781
The GH 833 is designed for professional contractors engaged in high-volume spraying of diverse materials. This durable, field-tested unit offers a combination of ruggedness, performance, and value for demanding job sites.
-
Honda Engine with Electric Start
- 390 cc (13 HP) engine with an integrated fuel tank for maximum output.
- Contractor-preferred engine featuring Oil Alert technology.
- Includes a backup pull start system.
- High-capacity 12 Volt 18 Amp charging system.
-
Heavy-Duty Cooling System
- Large 4-gallon hydraulic reservoir.
- Return line hydraulic filter for extended component life.
- Does not require specialized hydraulic fluid.
- Features a proven cooler and blower system.
- Equipped with an easily accessible drain plug.
-
Heavy-Duty Graco Hydraulic System
- Provides faster and more responsive changeover.
- O-ring sealed construction prevents leaks.
- Offers high-precision pressure control.
- Eliminates the need for a hydraulic reset button.
- Durable hydraulic lines ensure long service life.
-
Rugged, Heavy-Duty Steel Frame
- Features easy-rolling pneumatic tires.
- Enamel-painted steel tubing provides corrosion protection.
- Multi-function design allows conversion to a skid mount in seconds.
-
MaxLife Endurance Pump
- Proven design and performance.
- Achieves only 16 cycles per gallon (4.2 cycles per liter).
- Exclusive MaxLife rod and sleeve offer superior durability and longevity.
- Features the exclusive QuikChange Pump System and QuikAccess Intake Valve to minimize downtime.
-
Flow-Through Filter System
- Inside-out design prevents filter clogging.
- Eliminates tip clogs.
-
Ready-To-Spray Big 250 System
- Includes 250 feet of pressure-rated hose, a gun, tip extensions, and all necessary fittings.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955471351 |
| Division | CED |
Technical Specifications
| Specification | Value |
|---|---|
| Compatible Replacement Pump | 287834 |
| Engine Brand | Honda |
| Engine Size (HP) | 13 |
| Frame Configuration | Cart |
| Includes | Heavy-Duty Blue Texture Gun, RAC X LTX 519 Spray Tip, RAC X LTX 531 Spray Tip, RAC X Guard, 30 in Tip Extension, 180° Tip Swivel, 1/2 in x 250 ft Xtreme-Duty Airless Hose, 3/8 in x 10 ft Xtreme-Duty Airless Whip Hose |
| Maximum Flow Rate (L/min) | 15.1 |
| Maximum Hose Length (ft) | 250 |
| Maximum Hose Length (m) | 76 |
| Maximum Tip Size (in) | 0.053 |
| Maximum Working Pressure (psi) | 4000 |
| Maximum Working Pressure (kPa) | 27600 |
| Power Rating (HP) | 13 |
| Power Rating (kW) | 9.69 |
| Power Rating (W) | 9694 |
| Maximum Working Pressure (MPa) | 27.6 |
| Model | GH |
| Maximum Working Pressure (bar) | 276 |
| Series | 833ES |
| Outlet Paint Filter | Easy Out |
| Pump Mount Type | QuikChange |
| Pump Rod Type | MaxLife |
| Number of Guns | 1 |
| Product Type | Single Leg |
| Material Application | Paints, Primers |
| Power Rating (cc) | 390 |
