EPA Tier IV Turbocharged, after-cooled diesel engine

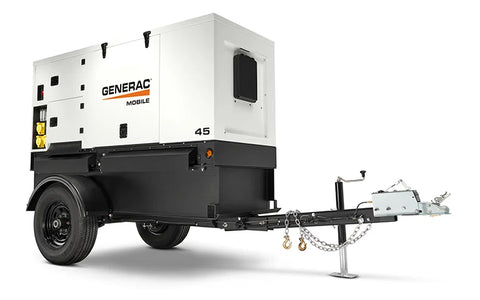

Generac | MMG45IF4-STD3, Trailer Mounted Mobile 40kw Diesel Generator, w/ Isuzu engine
MOBILE POWER • INDUSTRIAL DUTY
MMG45IF4-STD3, Trailer Mounted Mobile 40kw Diesel Generator, w/ Isuzu engine
Manufacturer: Generac
Model: MMG45IF4-STD3
Category: Diesel Mobile Power
A mobile diesel power system designed for construction, rental, industrial, utility, and emergency applications that require dependable output, transportability, and service access. Review the key features and detailed configuration below for the Generac MMG45IF4-STD3.
01
Long-run time – 27 hours
02
120% Containment
03
Simplified Controller- Deep Sea® DSE7310 with an easy-to-read status screen
04
13 warning and shutdown features
Key Features
Performance and operating advantages
Key manufacturer-listed features are organized below for faster comparison and purchasing review.
3 position selector switch for power output flexibility
Long-run time – 27 hours
Rust-proof, aluminum enclosure
Simplified Controller- Deep Sea® DSE7310 with an easy-to-read status screen
A powerful processor with intuitive operation and real time operational data
Programmable controller providing flexible application capabilities
Aluminum, sound attenuated enclosure – 65dB (A)
13 warning and shutdown features
Lockable control box door with diagnostics window
Lockable lug box with safety switch
Emergency stop switch located on outside of enclosure
Technical Details
System configuration and standard equipment
Expand each section to review the available technical details from the existing manufacturer product information.
Additional Key Features+
- Central lifting point
- 120% Containment
Engine System+
- Isuzu® 4LE2XAGV01
- 4 Cylinder
- Turbocharged & Aftercooled
- 134 in3 (2.2 L) Displacement
- EPA Tier 4 Final Approved
- Power @ 1,800 rpm – hp (kW):
- Prime: 57 (42.8)
- Standby: 63.7 (47.5)
- Approved for use with Hydrotreated Vegetable Oil (HVO) fuels compliant with ASTM D975 or EN 15940
- Paper Element Air Filter
- Electronic Isochronous Governing
- Fixed Speed Fan
- One Spin-on Cartridge Oil Filter
- Oil Drain Extension
- Two Fuel Filters
- One 12 V, 720 CCA, Wet Cell Battery
Cooling System+
- Capable of Operating at 120 °F (49 °C) Ambient
- 50/50 Coolant (50% Ethylene Glycol)
- Coolant Drain Extension
Fuel System+
- Polyethylene Fuel Tank
- Fuel Tank Capacity – gal (L):
- Total: 100 (379)
- Usable: 90 (341)
- Runtime @ 75% Load: 36 hr
- 110% Containment - engine fluid (oil & coolant) and fuel
- Padlockable Fuel Cap
Control System+
- Deep Sea Electronics® 7310 MKII Controller
- 3-Position Voltage Selection Switch
- 225 A Main Circuit Breaker (MCB), Manual, with Shunt Trip
- Individual Convenience Receptacle Circuit Breakers
- Emergency Stop Switch
- Battery Disconnect Switch, Padlockable
- 2-Wire Remote Start/Stop Contacts
Alternator System+
- 60 Hz Engine-Driven Alternator
- SUPERSTART Alternator
- Brushless
- 4 Pole
- 2/3 Pitch
- Class H Insulation
- Corrosion Protection
- Marathon Electric® PM500 AVR
- Shunt Excitation System
Power Distribution+
- Connection Lugs
- Convenience Receptacles
- Two 120 V, 20 A, GFCI Duplex (NEMA 5-20R)
- Three 120/240 V, 50 A, 3 Pole, 4 Wire Twistlock (CS6369)
Enclosure+
- Aluminum, Sound Attenuated, Insulated and Baffled
- UV and Fade Resistant, High Temperature Cured, White Polyester Powder Paint
- Central Lifting Point
- Fully Lockable Enclosure
- Multi Lingual Operating and Safety Decals
- Document Holder with Owner's Manual - includes AC and DC wiring diagrams
- Control Panel Lights
- Interior Lights
Trailer+
- Hydraulic Surge Brakes
- 2 in. (50.8 mm) Ball Hitch
- Single 6,000 lb. (2,722 kg) Axle
- 15 in. Tires, 6 Ply, Tubeless
- 2,000 lb. (907 kg) Tongue Jack with Footplate
- Safety Chains with Spring Loaded Safety Hooks
- Transportation Tie Downs
- Plug Adapter, Round 7 Blade (SAE J2863)
- DOT Approved Tail, Side, Brake, and Directional Lights
Warranty+
- 2 year Limited or 2,000 Hours
- Unlimited Hours Covered in First Year
Product specifications and available configurations may change. Confirm current requirements with HTS Supply before purchase.
