Full tubular steel frame, with lockable enclosure

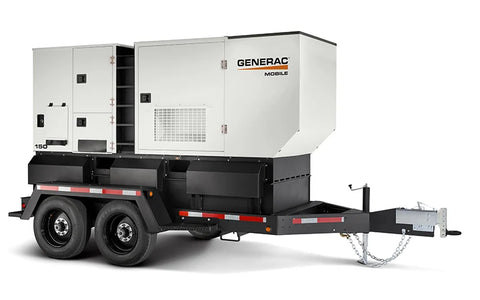

Generac | MLG20IF4-STD, Trailer Mounted Mobile 20kw Diesel Generator, w/ Isuzu engine
MOBILE POWER • INDUSTRIAL DUTY
MLG20IF4-STD, Trailer Mounted Mobile 20kw Diesel Generator, w/ Isuzu engine
Manufacturer: Generac
Model: MLG20IF4-STD
Category: Diesel Mobile Power
A mobile diesel power system designed for construction, rental, industrial, utility, and emergency applications that require dependable output, transportability, and service access. Review the key features and detailed configuration below for the Generac MLG20IF4-STD.
01
2 year - 2,000 hour warranty
02
Self-priming 4 cylinder Mitsubishi engine
03
Automatic low oil level / high temp shutdown alerts
04
External convenience outlets with individual breaker switches
Key Features
Performance and operating advantages
Key manufacturer-listed features are organized below for faster comparison and purchasing review.
Durable, fade resistant, white baked on powder coat finish
Stainless steel hinges, exterior hardware and pad lockable door latches
CSA Certified
Automatic low oil level / high temp shutdown alerts
70A main breaker
2 year - 2,000 hour warranty
Marathon voltage regulation within +/- 1%
Self-priming 4 cylinder Mitsubishi engine
External convenience outlets with individual breaker switches
External emergency stop switch
Technical Details
System configuration and standard equipment
Expand each section to review the available technical details from the existing manufacturer product information.
Engine System+
- Isolated Mounted Engine Supports
- Paper Element Air Filter with Safety Cartridge
- Fixed Speed Fan Drive
- Spin on Cartridge Oil Filter
- 720 CCA Wet Cell Battery
Cooling System+
- Capable of Operating at 120 °F (50 °C) Ambient
- Oil Filter: Spin-On Cartridge, Full Flow
- 50/50 Coolant (Ethylene Glycol)
- Factory Installed Radiator
- UV/Ozone Resistant Hoses
- Closed Coolant Recovery System
Fuel System+
- Fuel tank capacity – US gal (L): — Total 43.7 (165.4) — Usable: 39.4 (149.2)
- Primary Fuel Filter
- Pressure Tested Fuel Tank
- Fuel Level Gauge
Control System+
- Power Zone® digital controller
- 100 A Start Limit Breaker – Ensures No Load Condition Exists Before Starting
- Engraved Aluminum Punched and Anodized Control Panel
- Hour meter
- Automatic Shutdown for High Coolant Temperature and Low Oil Pressure
Generator System+
- Brushless Excitation
- 2/3 Pitch
- Four Pole
- Class F insulation
- Sealed Bearing
Power Distribution+
- Convenience receptacles with individual breakers
- (2) 120V, 20A, GFCI Dublex (NEMA-20R)
- (3) 240V, 30A, Twistlock (NEMA L14–30R)
- (1) 120/240V, 50A, Twistlock (CS6369)
Enclosure+
- Steel, 14-Gauge, Sound Attenuated Enclosure
- White Polyester Powder Paint — UV and Fade Resistant — High Temperature Cured
- Fully Lockable Enclosure
- Stainless Steel Hinges, Door Latches, and Exterior Hardware
- Exterior Emergency Stop Switch
- Multi-lingual Operating/Safety Decals
- Document Holder with Operating Manual, Including AC and DC Wiring Diagrams
Trailer+
- DOT Approved Tail, Side, Brake, and Directional Lights; Recessed Rear Lights
- Illuminated License Plate
- Transportation Tie Downs
- Safety Chains with Spring Loaded Safety Hooks
- Tongue jack with footplate – 2,000 (998 kg)
- 2 in. (50.8 mm) Ball Hitch
- Single Axle—2,200 lb (990 kg) Leaf Spring
- 2,000 lb (907 kg) Tongue Jack with Footplate
- 13 in. (330 mm) Tires
- Tires: ST175/80, 13 in. Rim
Warranty+
- 2 years, 2,000 Hours
- Unlimited Hours Covered in First Year
Product specifications and available configurations may change. Confirm current requirements with HTS Supply before purchase.
