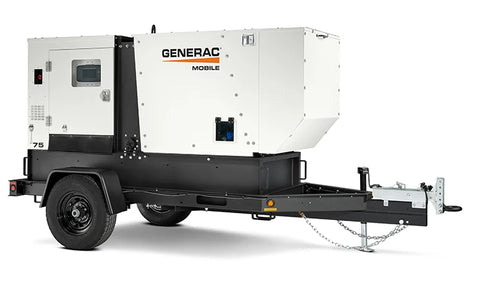

Generac | MDG75DF4-STD3, Trailer Mounted Mobile 68kw Diesel Generator, w/ John Deere Engine
MOBILE POWER • INDUSTRIAL DUTY
MDG75DF4-STD3, Trailer Mounted Mobile 68kw Diesel Generator, w/ John Deere Engine
Manufacturer: Generac
Model: MDG75DF4-STD3
Category: Diesel Mobile Power
A mobile diesel power system designed for construction, rental, industrial, utility, and emergency applications that require dependable output, transportability, and service access. Review the key features and detailed configuration below for the Generac MDG75DF4-STD3.
01
Long-run time – 27 hours
02
120% Containment
03
Simplified Controller- Deep Sea® DSE7310 with an easy-to-read status screen
04
13 warning and shutdown features
Key Features
Performance and operating advantages
Key manufacturer-listed features are organized below for faster comparison and purchasing review.
3 position selector switch for power output flexibility
Long-run time – 27 hours
Rust-proof, aluminum enclosure
Simplified Controller- Deep Sea® DSE7310 with an easy-to-read status screen
A powerful processor with intuitive operation and real time operational data
Programmable controller providing flexible application capabilities
Aluminum, sound attenuated enclosure – 65dB (A)
13 warning and shutdown features
Lockable control box door with diagnostics window
Lockable lug box with safety switch
Emergency stop switch located on outside of enclosure
Technical Details
System configuration and standard equipment
Expand each section to review the available technical details from the existing manufacturer product information.
Additional Key Features+
- Central lifting point
- 120% Containment
Engine System+
- John Deere® 4045HFG04
- 4 cylinder
- Turbocharged & Aftercooled
- 275 in3 (4.5 L) Displacement
- EPA Tier 4 Final
- Power @ 1,800 RPM -hp (kW): — Prime: 97 (73) — Standby: 107 (80)
- Paper Element Air Filter
- Electronic Isochronous Governing
- Variable Speed Fan
- Spin On Cartridge Oil Filter
- Oil Drain Extension
- One CCV System Filter
- One Fuel Filters
- One Fuel-Water Separator Filter
- One 12 V, 720 CCA, Wet Cell Battery
Cooling System+
- Capable of Operating at 107 °F (401.7 °C) Ambient
- 50/50 Coolant (50% Ethylene Glycol)
- Coolant Drain Extension
Fuel System+
- Single Wall Fuel Tank
- Fuel tank capacity — US gal (L): — Total: 165 (625) — Usable: 146 (552)
- Maximum Runtime @ 75% load: 39 hr
- DEF Tank Capacity – US gal (L): — Total: 12 (45.4) — Usable: 9.1 (34.4)
- Padlockable Fuel and DEF Tank Caps
Control System+
- Deep Sea Electronics® 7310 MKII Controller
- 3-Position Voltage Selection Switch
- 300 A Main Circuit Breaker (MCB), Manual, with Shunt Trip
- Individual Convenience Receptacle Circuit Breakers
- Emergency Stop Switch
- Remote 2-wire Start/Stop Contacts
Alternator System+
- 60 Hz Engine-Driven Alternator
- Standard Alternator — Brushless — 4 Pole — 2/3 pitch — Class H insulation — Corrosion Protection
- Marathon Electric® PM500 AVR
- Shunt Excitation System
Power Distribution+
- Connection Lugs
- Convenience Receptacles — Two 120 V, 20 A, GFCI Duplex (NEMA 5-20R) — Three 120/240 V, 50 A, 3 Pole, 4 Wire Twistlock (CS6369
Enclosure+
- Aluminum, Sound Attenuated Enclosure, Insulated and Baffled
- UV and Fade Resistant, High Temperature Cured, White Polyester Powder Paint
- Central Lifting Point
- Fully Lockable Enclosure
- Multi Lingual Operating and Safety Decals
- Document Holder with Owner's Manual - includes AC and DC wiring diagrams
Trailer+
- Hydraulic Surge Brakes
- 3 in (76.2 mm) Pintle Ring
- Single 6,000 lb (2,722 kg) Axle
- Tires: ST225/75, 15 in. Rim
- Heavy Duty Trailer Jack
- Safety Chains with Spring Loaded Safety Hooks
- Transportation Tie Downs
- Plug Adapter, Round 7 Spade (SAE J2863)
- DOT Approved Tail, Side, Brake, and Directional Lights
Warranty+
- 2 year limited or 2,000 hours — Unlimited hours covered in first year
Product specifications and available configurations may change. Confirm current requirements with HTS Supply before purchase.
