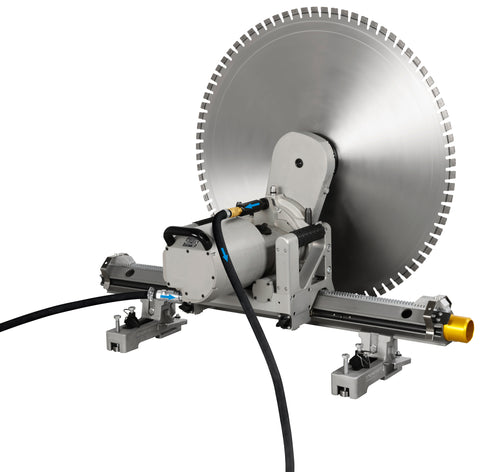

Diamond Products WSE2226 High Cycle Wall Saw System Complete - Part # 5801534, Cat # 46473
This high-cycle electric wall saw system is designed for heavy-duty concrete cutting applications. It features a maximum cutting depth of 39 inches and supports blade diameters up to 86 inches.
- Blade Capacity86in
- Cutting Depth39in
01Features & Build
-
High Cycle Electric Power
-
Quick Mount
- Quick-release blade flanges facilitate efficient blade changes.
- Accommodates starter blades up to 40 inches without requiring the blade to be in the cut.
- Worm drive feed system provides self-locking operation without a brake.
- Enhanced seal design for improved durability.
-
2 Handles
- Two-handle quick-disconnect system allows for rapid setup and removal.
- Two-stage gearbox supports a blade range from 32 to 86 inches.
- Integrated safety clutch positioned before the gearbox for equipment protection.
- Manual re-engage lever provided for clearing blade jams.
02Specifications4
| Brand | Diamond Products |
|---|---|
| Model | HYDROSTRESS WSE2226 |
| Part Number | 5801534 |
| Catalog Number | 46473 |
Specifications are supplied by the manufacturer and are subject to change without notice.
