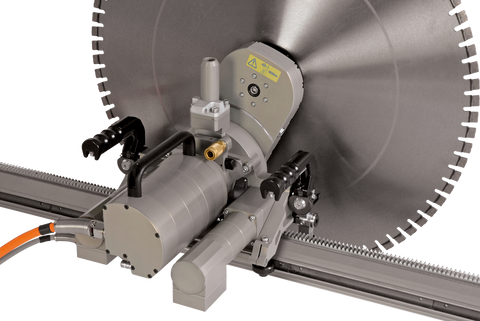

Diamond Products WSE1217 Wall Saw System (Included with WSE1217 complete system) - Part # 3402551
This electric wall saw system utilizes permanent magnet high-cycle motor technology to deliver consistent cutting performance. It is designed for heavy-duty concrete wall sawing with a maximum cutting depth of 22.5 inches.
- Blade Capacity54in
- Cutting Depth22.5in
- Voltage460Volt
- Weight56lbs
01Features & Build
-
Electric Powered
-
Performance and Efficiency
- Utilizes P2 technology with a permanent magnetic high-cycle motor for direct drive operation at lower RPMs.
- Maintenance-friendly design reduces service requirements and increases productivity.
- Features an automatic load-sensing feed and travel mechanism.
- High-cycle converter is compatible with the WCE14 wire saw.
-
Design
- Swivel arm provides 360-degree adjustment.
- Includes two carrying handles with integrated locking functions.
-
Motor
- Water-cooled high-frequency motor operates without a gearbox.
- Delivers 17 kW or 22.79 horsepower at 32 amps.
02Specifications14
| Brand | Diamond Products |
|---|---|
| Model | WSE1217 |
| Part Number | 3402551 |
| Maximum cutting depth | 22.5” |
| Maximum blade capacity | 54” |
| Maximum starter blade size | 32” |
| Blade mount | Quick-release flange |
| Voltage | 460 Volt |
| Frequency | 50Hz/60Hz |
| Output Frequency | 400 Hz |
| Wall Saw WSE1217 including feed motors-without main drive blade motor | 56 lbs. |
| Electric main blade motor only | 36 lbs. |
| MINIMUM GENERATOR SIZE REQUIREMENT | 30kW |
| Blade Capacity | 48” |
Specifications are supplied by the manufacturer and are subject to change without notice.
