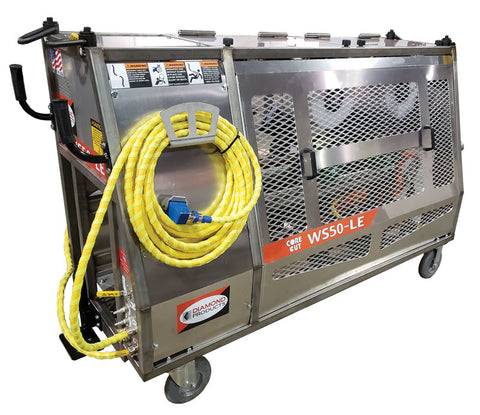

Diamond Products WS50-LE High-Cycle Wire Saw - Part # 5801622, Cat # 86582
This high-cycle electric wire saw is designed for heavy-duty concrete cutting applications. It features an 86-foot wire storage capacity to minimize downtime during large-scale cuts.
- Wire Capacity86ft
- Weight1100lbs
01Features & Build
-
High-Cycle Electric Powered
-
Operational Features
- Equipped with twin 25hp high-cycle electric motors for a compact power-to-weight ratio.
- Utilizes twin pneumatic cylinders for automatic, operator-adjustable wire tensioning.
- Provides 86 feet of wire storage capacity to reduce repositioning frequency.
- Features twin 16.50-inch diameter poly-coated drive wheels to improve wire friction.
- Includes a load adapter connection between the drive wheel and motor to extend component life.
- Designed with a low-entry pull side to mitigate risks from wire breakage.
- Includes fully positionable, low-friction wire guide pulleys.
- Offers multiple transport options including load-rated lifting rings, integrated fork pockets, and free-rolling casters.
- Features an interior water spray system for cooling the wire and idler wheels.
02Specifications8
| Brand | Diamond Products |
|---|---|
| Model | WS50-LE |
| Part Number | 5801622 |
| Catalog Number | 86582 |
| Length | 86.00” |
| Width | 32.00” |
| Height | 52.00” |
| Weight | Saw-1100lbs, Power Panel 200lbs> |
Specifications are supplied by the manufacturer and are subject to change without notice.
04Shipping & Ordering
This item ships at approximately 1,100 lbs. Machines ship by freight, quoted to the delivery address; contact us for a lift-gate or residential delivery quote before you order.
Need a volume price, a fleet configuration, or help matching this product to your application? Call us and we’ll spec it with you.
