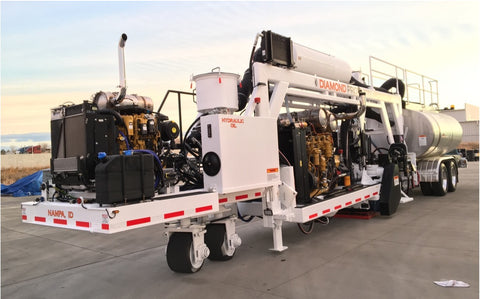

Diamond Products PC6004EC Highway Grinder - Part # PC6000EC, Cat # 96633
Part number: PC6000EC
This item is built or sourced to order. Send us the quantity and specs you need and our team will get you a firm quote and lead time — usually within one business day.
Request a quote
Prefer to talk it through? Contact our team.
- Trade & volume pricing for repeat orders
- Application support from our engineering team
- Fast turnaround on quotes and lead times
This highway grinder performs high-production surface profiling on concrete and asphalt pavements. It features a 50-inch cutting width and an industrial computer interface for automated speed control.
- Cutting Width50in
- Blade Capacity16in
01Features & Build
-
Diesel Powered
-
Made in the U.S.A.
-
Operational Design
- Engineered for high-production grinding and profiling of concrete and asphalt surfaces.
-
Operator Interface
- Centralized station supports both left and right-side operation.
-
Control Systems
- Supports manual operation or computer-controlled cruise control that adjusts speed based on cutting conditions.
-
Production Monitoring
- Includes an odometer for total footage, a resettable daily production counter, and a feet-per-minute indicator.
-
Slurry Management
- Integrated vacuum and discharge system for slurry removal.
-
Depth Control
- Side-to-side adjustable depth control wheel assemblies for precise cut matching.
- Hydraulically controlled depth wheels.
-
Wheelbase
- Front wheel bogey assembly is adjustable for an effective wheelbase of 1 3ft 5 inches (408.94cm) to 1 7 ft 11 in ches (546.1cm). NOTE: GRINDING/PROFILING EFFECTIVE WHEELBASE is the distance from the center of the front bogey assembly to the center of the rear Profile/Depth Control wheel assemblies located behind the cutting head.
-
Transport
- Compatible with standard 3-axle semi tractors for transport.
-
Water System
- Includes a 2850-gallon stainless steel water tank, hydraulically driven pump, filtration, and stainless steel spray bar.
02Specifications6
| Brand | Diamond Products |
|---|---|
| Model | PC6004EC |
| Part Number | PC6000EC |
| Catalog Number | 96633 |
| Power Source | Diesel |
| Blade Capacity | 16” |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Downloads1
04Shipping & Ordering
Machines ship by freight, quoted to the delivery address; contact us for a lift-gate or residential delivery quote before you order.
Need a volume price, a fleet configuration, or help matching this product to your application? Call us and we’ll spec it with you.
