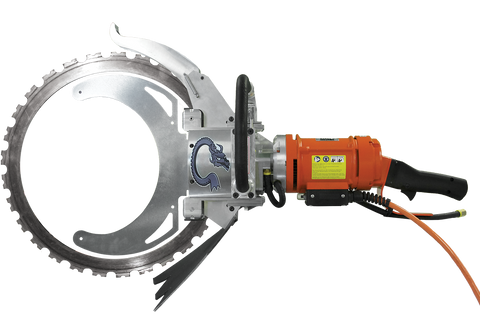

Diamond Products Dragon Ring Saws 115V, 30amp Electric - Part # 5801533, Cat # 46095
This ring saw performs deep-cut concrete and block sawing with a maximum cutting depth of 16 inches. It utilizes a specialized drive system to transfer power directly to the blade for efficient corner cutting.
- Blade Diameter16-20in
- Cutting Depth12-16in
- Weight29.8-34lbs
- Power3200W
01Features & Build
-
Operational Features
- Cuts up to 16 inches deep in concrete or block
- Direct power transfer to the blade
- 1/3 less cutting cost than chain sawing
- Prevents over-cutting at corners
- Operates up to three times faster than chain saws
- Extends diamond blade life by up to five times
- Lightweight design
02Specifications17
| Brand | Diamond Products |
|---|---|
| Part Number | 5801533 |
| Catalog Number | 46095 |
| Motor/Engine Power | 115V, 30amp |
| Power Source | Electric |
| Minimum Blade Diameter | 16” |
| Maximum Blade Diameter | 20” |
| 16” Blade Cutting Depth | 12” |
| 20” Blade Cutting Depth | 16” |
| Blade Cooling | Water cool only (no dry cutting) |
| PSI (pounds per square inch) | 2000 (2500 Max) |
| Weight | 29.8 lbs. |
| Connections | 1/2” hose (appox. 12” length) 1/2” fittings |
| Power head | Weka RS30 |
| Power | 115V, 30A, 3200W 230V, 15A, 3200W |
| Overload | electronic |
| Weight | 34 lbs. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Related Products3

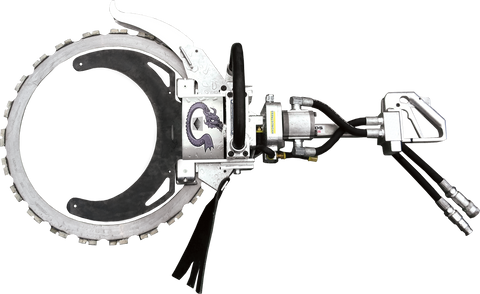

- 5801523Dragon Ring Saws 8 gpm Hydraulic - Part # 5801523, Cat # 87796
