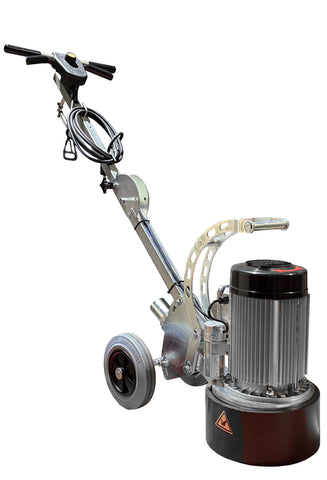

Diamond Products CPG825E1 (Alpha) Grinder/Polisher - Part # 5802008, Cat # 113768
This electric floor grinder and polisher is designed for surface preparation and coating removal. It features a 19-inch grinding width and a 1.5 HP motor for consistent material removal.
- Grinding Width19in
- Power1.5HP
- Weight95lbs
- Speed1290RPM
01Features & Build
-
Features
- Dust shroud removes for flush-to-wall grinding
- Compatible with a wide range of grinding and coating removal tooling
- Core Lock diamond retention system enables rapid tooling changes
- Handle folds for transport
- Equipped with a flexible drive coupling
02Specifications13
| Brand | Diamond Products |
|---|---|
| Model | CPG825E1 |
| Part Number | 5802008 |
| Catalog Number | 113768 |
| Voltage / Frequency | 115V - 1PH, 60 Hz |
| Power | 1.5HP Electric |
| Current | 15 amp |
| Speed (drive motor) | 1290 RPM |
| Application | Floor Grinding & Polishing |
| Grinding Speed | 600 RPM |
| Grinding Disc | 1 x 13" |
| Grinding Width | 482.6mm / 19" |
| Weight | 95 lbs. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Downloads2
04Shipping & Ordering
This item ships at approximately 95 lbs. Machines ship by freight, quoted to the delivery address; contact us for a lift-gate or residential delivery quote before you order.
Need a volume price, a fleet configuration, or help matching this product to your application? Call us and we’ll spec it with you.
