Diamond Products CPG305 Handheld Polisher - Part # 5801328, Cat # 32947
This handheld unit grinds, hones, and polishes concrete surfaces using a planetary, gear-driven system. It features a 2 HP motor that drives three 5-inch pads at 2,500 RPM.
- Pad Capacity5in
- Motor Power2HP
- Voltage115V
- RPM2,500
01Features & Build
-
System Configuration

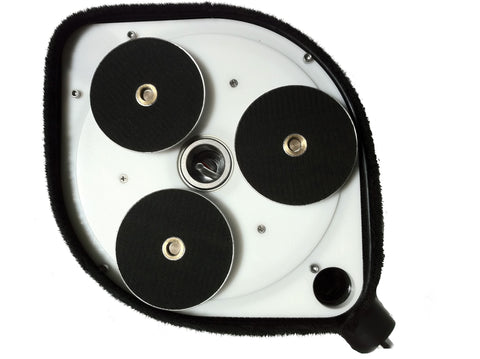

- Utilizes three 5-inch diamond polishing pads or grinding discs
- Planetary, gear-driven design with a 12-inch platform
- 12-inch platform operates at a lower rotational speed than the platens
-
Motor and Power
- Equipped with a 2 HP FEIN variable speed motor
- Requires 115V/60Hz power with an 11-amp draw on a 20-amp breaker
-
Operational Features
- Includes center coolant feed for wet operation
- Integrated vacuum port for dry operation with optional dust cowl
- Constructed with precision bearings and heavy-duty handles
02Specifications4
| Brand | Diamond Products |
|---|---|
| Model | CPG305 |
| Part Number | 5801328 |
| Catalog Number | 32947 |
Specifications are supplied by the manufacturer and are subject to change without notice.
