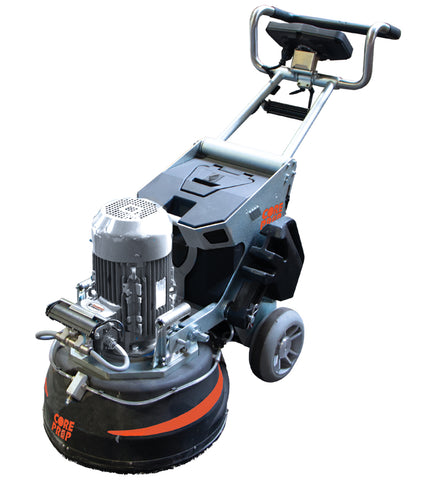

Diamond Products CPG205E3 Grinder Polisher - Part # 5802000, Cat # 111865
This electric floor grinder and polisher is designed for surface preparation and finishing tasks. It features a 20-1/4 inch grinding width and a planetary drive system for consistent results.
- Grinding Width20-1/4in
- Power5HP
- Speed1,000 - 2,850RPM
- Weight278.8lbs
01Features & Build
-
FEATURES
- Lightweight, compact frame with modular components for transport
- Gear-driven system engineered for productivity and low maintenance
- Three-head planetary gear drive
- Integrated 3-gallon water tank and external connection for wet grinding
- Built-in LED lighting for visibility
02Specifications16
| Brand | Diamond Products |
|---|---|
| Model | CPG205E3 |
| Part Number | 5802000 |
| Catalog Number | 111865 |
| Voltage / Frequency | 460V / 60 Hz |
| Grind / Polish Width | 20-1/4" |
| Nominal Power | 5 HP |
| Nominal Current | 7.9 A |
| Variable Speed | 1,000 - 2,850 RPM |
| Application | Dry / Wet |
| Water Tank | 3 Gallon |
| Length | 52" |
| Width | 21.65" |
| Height | 45" |
| Weight | 278.8 lbs. |
| Power Source | Electric |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Downloads1
04Shipping & Ordering
This item ships at approximately 279 lbs. Machines ship by freight, quoted to the delivery address; contact us for a lift-gate or residential delivery quote before you order.
Need a volume price, a fleet configuration, or help matching this product to your application? Call us and we’ll spec it with you.
